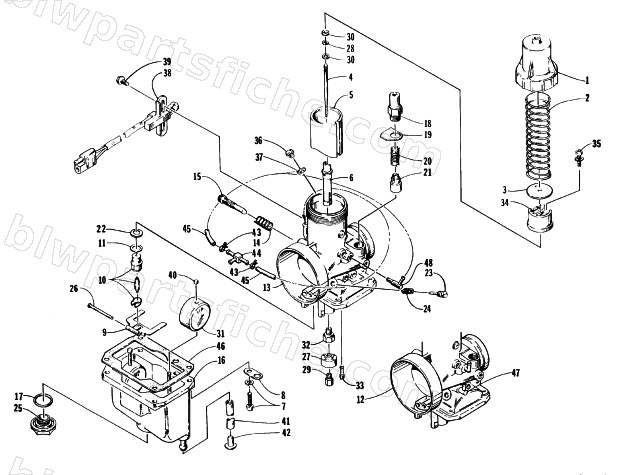

1997 Arctic Cat POWDER SPECIAL — CARBURETOR VM38
1997 POWDER SPECIAL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0770-168 | CARB,VM38-321 RH W/SWITCH | 1 | $692.95 | |
| 0 | 0770-169 | CARB,VM38-322 LH W/SWITCH | 1 | $655.95 | |
| 1 | 6505-582 | TOP,MIXING CHAMBER | 1 | $73.95 | |
| 2 | 6505-584 | SPRING | 1 | $24.77 | |
| 3 | 6505-588 | PLATE,RETAINER-MAGNET | 1 | $15.11 | |
| 4 | 6505-236 | JET NEEDLE 6DH8 | 1 | $26.95 | |
| 5 | 6505-643 | VALVE,PISTON-3.0-NICKLE PLATED | 1 | $133.95 | |
| 6 | 6505-825 | NEEDLE JET P-3(480) | 1 | $34.95 | |
| 7 | 6505-195 | SCREW | 1 | $1.78 | |
| 8 | 6505-094 | PLATE,HOSE-CARBURETOR | 1 | $10.97 | |
| 9 | 6505-638 | ARM,FLOAT | 1 | $22.01 | |
| 10 | 6505-171 | VALVE,NEEDLE | 1 | $50.95 | |
| 11 | 6505-102 | WASHER,VALVE SEAT | 1 | $1.09 | |
| 14 | 6505-021 | SPRING | 1 | $3.44 | |
| 15 | 6505-101 | SCREW,THROTTLE STOP | 1 | $6.89 | |
| 16 | 6505-637 | FLOAT,CHAMBER BODY | 1 | $94.95 | |
| 17 | 6505-622 | O-RING | 1 | $4.95 | |
| 18 | 6505-188 | CAP,STARTER PLUNGER | 1 | $16.49 | |
| 19 | 6505-193 | WASHER | 1 | $3.16 | |
| 20 | 6505-033 | SPRING,STARTER PLUNGER | 1 | $17.87 | |
| 21 | 6505-035 | PLUNGER,STARTER | 1 | $17.87 | |
| 22 | 6505-612 | WASHER VM16/166 | 1 | $1.23 | |
| 23 | 6505-019 | SCREW,AIR | 1 | $12.35 | |
| 24 | 6505-020 | SPRING,SCREW AIR | 1 | $3.44 | |
| 25 | 6505-617 | PLUG,DRAIN-FLOAT CHAMBER | 1 | $38.95 | |
| 26 | 6505-153 | PIN,FLOAT ARM | 1 | $3.16 | |
| 27 | 6505-620 | RING | 1 | $24.77 | |
| 28 | 6505-610 | E-RING | 1 | $2.19 | |
| 29 | 6505-079 | JET MAIN 240 | 1 | $6.75 | |
| 30 | 6505-437 | WASHER E-RING NYLON | 1 | $1.78 | |
| 31 | 6505-049 | FLOAT | 1 | $29.95 | |
| 32 | 6505-199 | GUIDE SCREW | 1 | $17.87 | |
| 33 | 6505-262 | JET PILOT 50 | 1 | $4.95 | |
| 34 | 0770-045 | BLOCK,W/MAGNET | 1 | $62.95 | |
| 35 | 6505-591 | SCREW | 1 | $1.64 | |
| 36 | 6505-400 | SCREW | 1 | $1.50 | |
| 37 | 6505-399 | WASHER | 1 | $0.95 | |
| 38 | 0630-008 | SWITCH,MAGNETIC CARB ASSY | 1 | $63.95 | |
| 39 | 0623-137 | SCREW,TAPTITE-HWH 6-32X.313 Z&Y | 1 | $0.32 | |
| 40 | 6505-010 | CAP | 1 | $1.64 | |
| 41 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 42 | 0670-228 | PLUG,CARB DRAIN | 1 | $3.30 | |
| 43 | 6505-902 | CLIP (VM38/286) | 1 | $6.95 | |
| 44 | 6505-903 | NIPPLE (792-93002) | 1 | $19.25 | |
| 45 | 6505-904 | HOSE (888-33017) | 1 | $17.87 | |
| 46 | 6505-197 | GASKET | 1 | $13.73 | |
| 47 | 6505-569 | CAP | 1 | $15.11 | |
| 48 | 6505-909 | FITTING | 1 | $37.95 |
