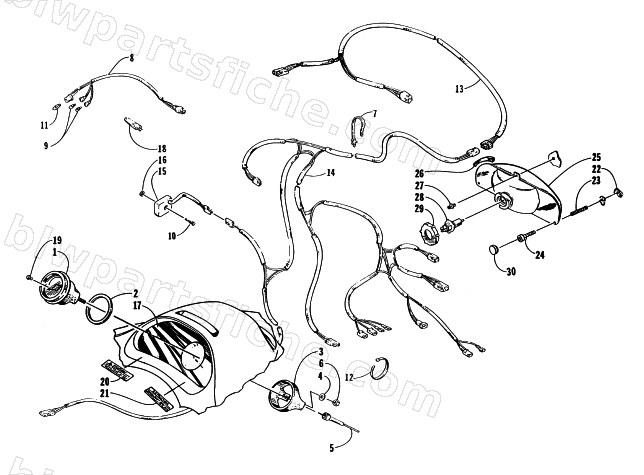

1997 Arctic Cat PUMA — INSTRUMENTS AND WIRING ASSEMBLIES
1997 PUMA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 7 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 10 | 8002-048 | SCREW,CAP-HH 1/4-20 X2.25 G5 Z&Y | 1 | $0.68 | |
| 11 | 0230-020 | BULB, T-10 WEDGE BASE-12 V 3.4W | 1 | $3.16 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 14 | 0686-395 | HARNESS,MAIN WIRING | 1 | $174.95 | |
| 15 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 17 | 2611-680 | DECAL, INSTRUMENTS-HOOD | 1 | $25.95 | |
| 19 | 0620-073 | KNOB,TRIPMETER | 1 | $15.11 | |
| 20 | 2611-753 | DECAL,CAUTION-FUEL | 1 | $26.95 | |
| 21 | 2611-754 | DECAL,CAUTION-FUEL-FRENCH | 1 | $84.95 | |
| 22 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 23 | 0623-466 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $5.78 | |
| 24 | 0623-678 | SCREW,CAP-HSH 1/4-20X3.75 ZY | 1 | $2.75 | |
| 25 | 0609-245 | LENS/REFLECTOR-HEADLIGHT(REF0609-244) | 1 | $158.95 | |
| 26 | 0617-173 | SEAL,HEADLIGHT .50 X .75 X 30 | 1 | $3.95 | |
| 27 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 28 | 0109-724 | R/B 0609-956 | 1 | $29.95 | |
| 29 | 0609-296 | COLLAR, LOCKING-HEADLIGHT (THIN) | 1 | $13.73 | |
| 30 | 0623-680 | KNOB,THUMB SCREW | 1 | $2.47 |
