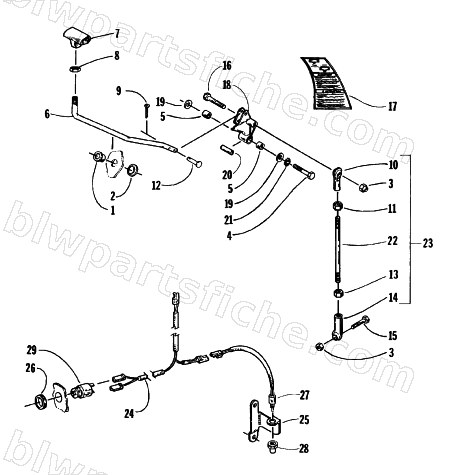

REVERSE SHIFT LEVER ASSEMBLY
1997 PUMA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1639-635 | KIT, REVERSE SHIFT LEV - '00 FAN/ZL'S\ | 1 | $154.95 | |
| 1 | 1606-086 | GUIDE,SHIFT LEVER | 1 | $8.21 | |
| 2 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 3 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 4 | 8002-140 | SCREW,CAP-HH 5/16-18 X2.75 G5 Z&Y | 1 | $1.23 | |
| 5 | 0602-844 | BEARING, (GARLOCK 08DU08) SHOCK END .500 | 1 | $3.16 | |
| 6 | 0602-924 | LEVER, REV SHIFT PUMA/JAG | 1 | $64.95 | |
| 7 | 0602-851 | GRIP,HANDLE-SHIFT LEVER | 1 | $34.95 | |
| 8 | 0123-005 | NUT,JAM 1/2-13 | 1 | $3.16 | |
| 10 | 0602-322 | ROD END,5/16-24-RH | 1 | $29.95 | |
| 11 | 0123-144 | NUT,HEX-JAM 5/16-24 NF ZN | 1 | $0.26 | |
| 12 | 0623-641 | PIN,CLEVIS-3/16X1 | 1 | $1.19 | |
| 13 | 0623-260 | NUT,HEX JAM 5/16-24 NF L H | 1 | $1.09 | |
| 14 | 0602-305 | ROD END L.H. 5/16-24 UNF | 1 | $22.95 | |
| 15 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 16 | 8002-139 | SCREW,CAP-HH 5/16-18 X2.50 G5 Z&Y | 1 | $1.95 | |
| 17 | 2611-783 | DECAL, REVERSE-PUMA/JAG | 1 | $25.95 | |
| 18 | 0702-335 | LINK,SHIFT PIVOT W/BUSHING | 1 | $82.95 | |
| 19 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 20 | 0602-853 | AXLE,PIVOT LINK | 1 | $12.95 | |
| 21 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 22 | 0702-290 | LINK,SHIFTING-LOWER | 1 | $94.95 | |
| 24 | 0686-120 | HARNESS,WIRING-ALARM | 1 | $41.95 | |
| 25 | 0602-854 | BRACKET,REV.SWITCH | 1 | $138.95 | |
| 26 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 27 | 0630-011 | SWITCH, ALARM | 1 | $60.95 | |
| 28 | 0630-013 | BOOT,SWITCH-REVERSE | 1 | $20.63 | |
| 29 | 0630-010 | ALARM,REVERSE | 1 | $112.95 |
