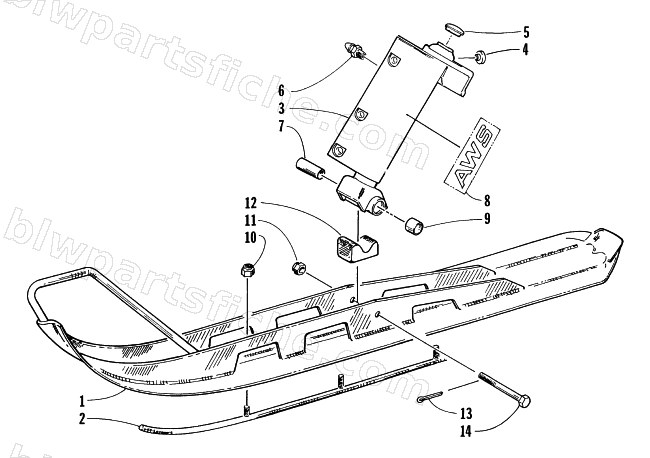

SKI AND SPINDLE ASSEMBLY
1997 PUMA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0703-175 | SKAG-PTD BLK | 1 | $26.95 | |
| 3 | 0703-442 | SPINDLE,FAB.-RH ('97 ALUM. SPINDLE) | 1 | $406.95 | |
| 3 | 0703-443 | SPINDLE,FAB.-LH ('97 ALUM. SPINDLE) | 1 | $381.95 | |
| 4 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 5 | 0603-049 | CAP, SPINDLE | 1 | $0.68 | |
| 6 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 7 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 8 | 2611-291 | DECAL, AWS-WHITE-LARGE | 1 | $5.95 | |
| 9 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 10 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 11 | 0623-027 | NUT,FLEX7/16-14 NC | 1 | $6.95 | |
| 12 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 13 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 14 | 0623-080 | SCREW,CAP W/HOLE-HH 7/16-14X4 1/4 GR5 Z& | 1 | $20.63 |
