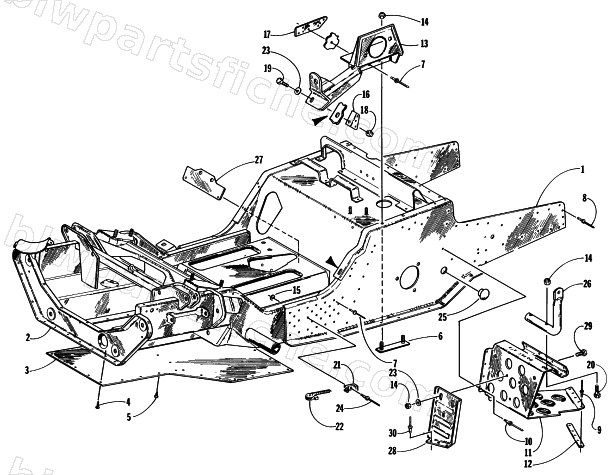

1997 Arctic Cat THUNDERCAT MC — FRONT FRAME AND FOOTREST ASSEMBLY
1997 THUNDERCAT MC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-859 | FRONT END-CHASSIS-PTD BLK | 1 | $679.95 | |
| 2 | 0707-272 | FRONT END-WELD'T 800 THC | 1 | $1,067.95 | |
| 4 | 0623-219 | SCREW,TAPPING 10-24X3/4 TYPE F,TYPE 1 CR | 1 | $0.68 | |
| 5 | 0623-569 | SCREW,SELF TAP-TSFH #10-32X1/2 TYPF Z&Y | 1 | $0.68 | |
| 6 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 7 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 8 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 9 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 10 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 11 | 0706-866 | FOOTREST-RH,UNPAINTED | 1 | $100.95 | |
| 11 | 0716-023 | FOOTREST,LH-W/STUDS | 1 | $74.95 | |
| 12 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 13 | 1707-474 | SUPPORT,BEARING-PTD BLK | 1 | $223.95 | |
| 14 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 17 | 0607-388 | PLATE,BACKING-BEARING SUPPORT | 1 | $3.99 | |
| 18 | 8043-362 | NUT,1/4-20 HEX LOCK-MET TOP LOCK GRA Z&Y | 1 | $0.25 | |
| 19 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 20 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 21 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 22 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 23 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 24 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 25 | 0623-471 | PLUG,HOLE-.750 DIA BLACK | 1 | $1.23 | |
| 26 | 0716-219 | TUBE,BUMPER SUPPORT | 1 | $30.95 | |
| 27 | 0605-213 | PLATE,BACKING-FRONT COVER | 1 | $15.11 | |
| 28 | 0616-387 | GUARD,DRIVE BELT-FOOTREST | 1 | $33.95 | |
| 29 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 30 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 |
