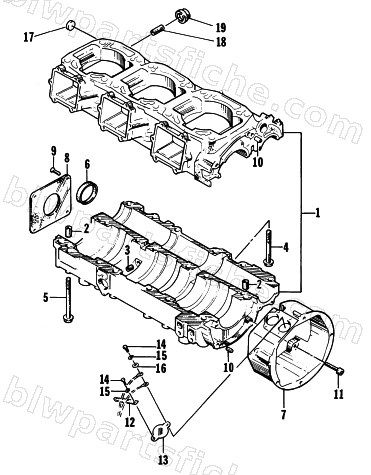

CRANKCASE ASSEMBLY
1997 THUNDERCAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-146 | CRANKCASE ASSY (800/1000 L/C) | 1 | $4,393.95 | |
| 2 | 3003-646 | PIN,CRANKCASE,ALINGMENT,11MM | 1 | $4.26 | |
| 3 | 3003-289 | BUSHING,OIL PUMP,M7 | 1 | $5.09 | |
| 4 | 3008-212 | BOLT, 10X70 | 1 | $13.73 | |
| 5 | 3004-501 | BOLT, 10X90 | 1 | $5.92 | |
| 6 | 3004-539 | PLUG,BALANCER (52MM OD) | 1 | $24.77 | |
| 7 | 3004-928 | CASE, MAGNETO | 1 | $417.95 | |
| 8 | 3007-367 | KIT,OIL SEAL PLATE | 1 | $32.95 | |
| 9 | 3007-393 | SCREW,M6X16 | 1 | $2.06 | |
| 10 | 3002-012 | PIN, DOWEL 9 X 12 | 1 | $2.88 | |
| 11 | 3007-557 | BOLT | 1 | $4.68 | |
| 12 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 13 | 3004-129 | PLATE,COVER-SENSOR | 1 | $5.95 | |
| 14 | 0623-352 | SCREW,CAP-HH 5MMX.8X12 CL8.8 Z&Y | 1 | $0.26 | |
| 15 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 16 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 18 | 0670-323 | PLUG,IMPULSE NIPPLE | 1 | $3.71 | |
| 19 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 |
