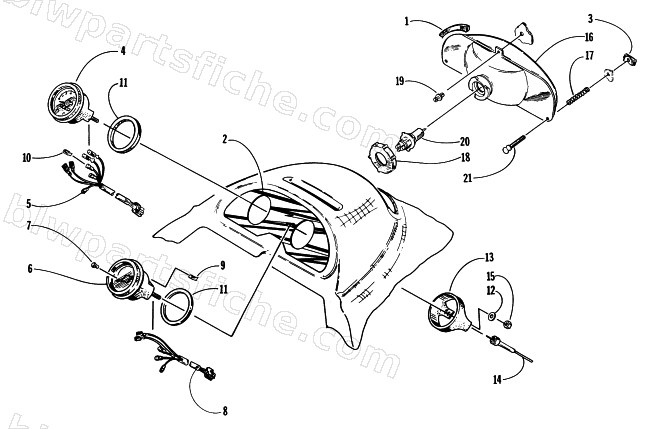

HEADLIGHT AND INSTRUMENTS
1997 THUNDERCAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0617-173 | SEAL,HEADLIGHT .50 X .75 X 30 | 1 | $3.95 | |
| 2 | 2611-543 | DECAL,HOOD-CONSOLE (THC) | 1 | $45.95 | |
| 3 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 4 | 0620-144 | TACHOMETER, ELECTRIC-12 POLE FARIA 5 | 1 | $350.95 | |
| 5 | 0620-150 | HARNESS,TACHOMETER BULB | 1 | $117.95 | |
| 6 | 0620-238 | SPEEDOMETER, 100MPH-W/O AC LOGO | 1 | $237.95 | |
| 7 | 0620-073 | KNOB,TRIPMETER | 1 | $15.11 | |
| 8 | 0620-151 | HARNESS,SPEEDOMETER BULB | 1 | $117.95 | |
| 9 | 0230-020 | BULB, T-10 WEDGE BASE-12 V 3.4W | 1 | $3.16 | |
| 10 | 0620-149 | BULB,T-10 WEDGE BASE-12V 1.7W | 1 | $4.95 | |
| 11 | 0620-135 | RING, RUBBER CUSHION-TACH/SPEEDO | 1 | $3.57 | |
| 12 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 13 | 0620-134 | BACKCLAMP, TACH/SPEEDO | 1 | $17.95 | |
| 14 | 0620-269 | CABLE, SPEEDOMETER-96" | 1 | $68.95 | |
| 15 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 16 | 0609-245 | LENS/REFLECTOR-HEADLIGHT(REF0609-244) | 1 | $158.95 | |
| 17 | 0623-466 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $5.78 | |
| 18 | 0609-296 | COLLAR, LOCKING-HEADLIGHT (THIN) | 1 | $13.73 | |
| 19 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 20 | 0109-724 | R/B 0609-956 | 1 | $29.95 | |
| 21 | 0623-467 | SCREW,THUMB-1/4X20X3.5 | 1 | $15.11 |
