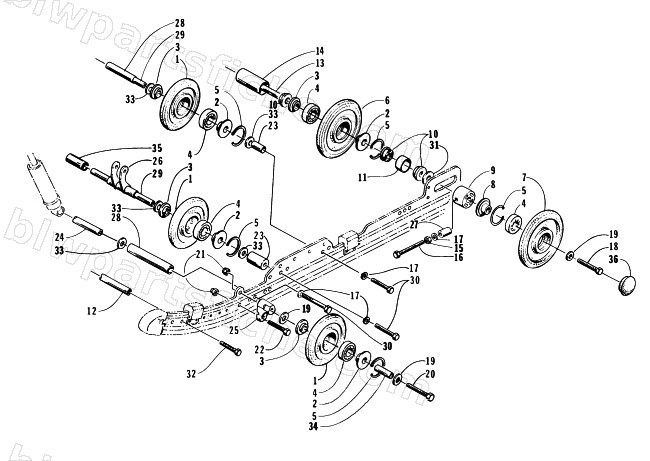

1997 Arctic Cat Z 440 — IDLER WHEEL ASSEMBLY
1997 Z 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0604-459 | WHEEL,IDLER | 1 | $53.95 | |
| 2 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 3 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 4 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 5 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 6 | 0604-210 | WHEEL,IDLER-CENTER | 1 | $53.95 | |
| 7 | 0604-980 | WHEEL,IDLER-6.38"-REAR-GRN | 1 | $53.95 | |
| 8 | 1604-774 | INSERT,5/8 BORE X 2" (LONG) | 1 | $6.34 | |
| 9 | 0604-936 | BUSHING,REAR WHEEL ADJUSTER | 1 | $10.97 | |
| 10 | 0604-968 | BUSHING,SPACER-REAR WHEEL | 1 | $9.59 | |
| 11 | 0604-937 | SPACER,REAR WHEEL -OUTER | 1 | $12.35 | |
| 12 | 0604-426 | AXLE, XBRC-.625X8.750 (5/16-18) | 1 | $34.95 | |
| 13 | 0604-208 | AXLE,REAR WHEEL | 1 | $53.95 | |
| 14 | 1704-466 | SPACER,REAR WHEEL-PTD BLK | 1 | $17.87 | |
| 15 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 16 | 0623-123 | SCREW,CAP-HEX-3/8-16X5 | 1 | $2.47 | |
| 17 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 18 | 8012-223 | SCREW,CAP-HHNLP 3/8-16X1.125 G5 Z&Y | 1 | $3.95 | |
| 19 | 0123-570 | WASHER,FLAT .390X1.38X.134 | 1 | $5.92 | |
| 20 | 8002-233 | SCREW,CAP-HH 3/8-16 X3.50 G5 Z&Y | 1 | $1.78 | |
| 21 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 22 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 23 | 0604-916 | SPACER,ALUM -AUX WHEEL -1.45" | 1 | $14.95 | |
| 24 | 0604-914 | AXLE,XBRC (STL) -.625X8.750 (3/8-16) | 1 | $50.95 | |
| 25 | 0604-911 | BLOCK,MTG-IDLER WHEEL | 1 | $24.95 | |
| 26 | 0704-589 | PIVOT,REAR SHOCK-PTD BLK | 1 | $30.95 | |
| 27 | 0604-298 | SPACER,SHOCK LINK-Z&Y | 1 | $33.95 | |
| 28 | 0604-922 | SPACER,ALUM-AUX.WHEEL-3.78" | 1 | $16.49 | |
| 29 | 0604-930 | AXLE,XBRC (ALUM) -625X8.750 (3/8-16) | 1 | $37.95 | |
| 30 | 8012-224 | SCREW,CAP-HHNLP 3/8-16X1.25 G5 Z&Y | 1 | $12.35 | |
| 31 | 0623-220 | WASHER,FLAT .625IDX1.50ODX.109 | 1 | $4.95 | |
| 32 | 8012-132 | SCREW,CAP-HHNLP 5/16-18X1.0 G5 Z&Y | 1 | $0.65 | |
| 33 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 34 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 35 | 0603-105 | SPACER,AUX WHEEL-INSIDE | 1 | $13.73 | |
| 36 | 0604-246 | CAP,IDLER WHEEL-BLACK (DP 1500) | 1 | $3.16 |
