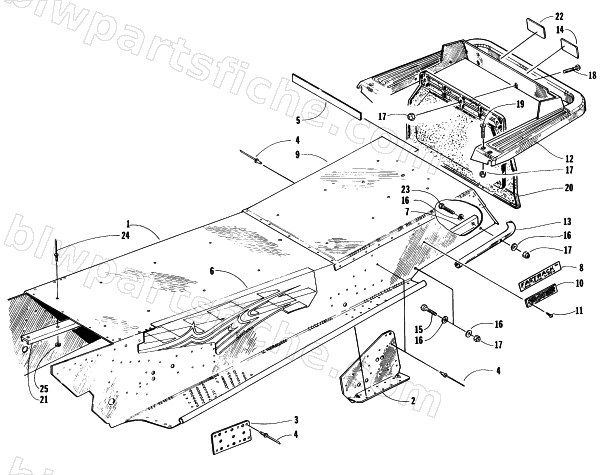

1997 Arctic Cat Z 440 — TUNNEL AND REAR BUMPER
1997 Z 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-514 | TUNNEL ASSY-97 440Z | 1 | $731.95 | |
| 2 | 2706-608 | BRACKET,SUSP.RH-PTD BLK | 1 | $92.95 | |
| 2 | 2706-609 | BRACKET,SUSP.LH-PTD BLK | 1 | $92.95 | |
| 3 | 2706-111 | PLATE,BODY-REINFORCEMENT-PTD BLK | 1 | $14.95 | |
| 4 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 5 | 2611-742 | DECAL,TUNNEL-REAR-ETT (GREEN) | 1 | $19.95 | |
| 6 | 2611-638 | DECAL,TUNNEL-RH ('97Z4A) | 1 | $50.95 | |
| 6 | 2611-639 | DECAL,TUNNEL-LH ('97Z4A) | 1 | $50.95 | |
| 7 | 0604-885 | GUIDE,INNER TUNNEL SIDE PROTECTOR | 1 | $21.95 | |
| 8 | 2611-741 | DECAL, "FASTRACK" - TUNNEL | 1 | $16.95 | |
| 9 | 1606-096 | PLATE,END-REAR TUNNEL (F/C) | 1 | $81.95 | |
| 10 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 11 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 12 | 0616-730 | BUMPER,REAR-'ETT' | 1 | $172.95 | |
| 13 | 2706-600 | INSERT,BUMPER-PTD BLK | 1 | $64.95 | |
| 14 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 15 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8007-585 | SCREW,MACH-CRTH 1/4-20X1.50 G2 Z&Y | 1 | $0.40 | |
| 19 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 20 | 0616-612 | SNOWFLAP,30 DEG.FLIP UP WHITE | 1 | $54.95 | |
| 20 | 0616-613 | SNOWFLAP,REV- | 1 | $68.95 | |
| 21 | 0716-577 | WEARSTRIP,TUNNEL-ETT | 1 | $52.95 | |
| 22 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 23 | 8002-048 | SCREW,CAP-HH 1/4-20 X2.25 G5 Z&Y | 1 | $0.68 | |
| 24 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 25 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 |
