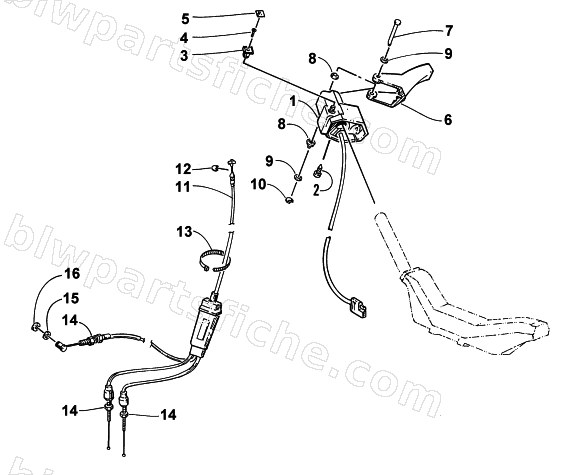

THROTTLE CONTROL ASSEMBLY
1997 ZL 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-271 | CONTROL, THROTTLE-N.O. W/O IDLE SWITCH | 1 | $149.95 | |
| 2 | 0609-085 | SCREW,RETAINING-M6X20 | 1 | $1.50 | |
| 3 | 0609-282 | KNOB,EMER STOP SW-N.O. | 1 | $15.11 | |
| 4 | 0609-612 | SCREW, SELF-TAP PH-3MMX10MM | 1 | $3.16 | |
| 5 | 0609-283 | DECAL,MARK PLATE-N.O. | 1 | $13.95 | |
| 6 | 0609-131 | LEVER,THROTTLE-VM36 | 1 | $37.95 | |
| 7 | 0609-039 | PIN,THROTTLE LEVER | 1 | $3.95 | |
| 8 | 0609-038 | SEAL,THROTTLE | 1 | $1.50 | |
| 9 | 0609-036 | WASHER,FLAT | 1 | $0.95 | |
| 10 | 0609-040 | E-RING .187 SHAFT | 1 | $1.92 | |
| 11 | 0687-036 | CABLE,THROTTLE-VM36 | 1 | $116.95 | |
| 12 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 13 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 14 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 | |
| 15 | 0124-056 | WASHER | 1 | $13.73 | |
| 16 | 0124-057 | E-RING | 1 | $1.64 |
