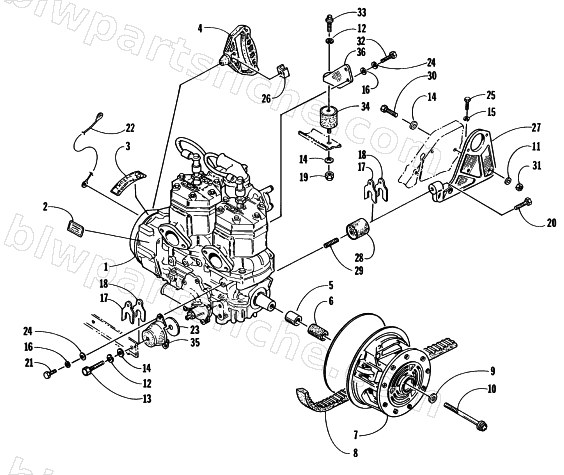

1997 Arctic Cat ZR 440 — ENGINE AND RELATED PARTS
1997 ZR 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-216 | ENGINE,440 L/C (98) | 1 | $2,203.95 | |
| 2 | 2611-716 | DECAL,ENGINE P/N 0662-189 | 1 | $3.95 | |
| 4 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 5 | 0646-107 | SPACER,ALUMINUM-CLUTCH | 1 | $29.95 | |
| 6 | 0646-106 | SPACER,URETHANE-CLUTCH | 1 | $5.09 | |
| 7 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 8 | 0627-010 | BELT, DRIVE CVT-12.2 | 1 | $106.95 | |
| 9 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 10 | 0623-206 | BOLT,COUNTERBORE-1/2-20X5.5 | 1 | $20.63 | |
| 11 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 12 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 13 | 8002-229 | SCREW,CAP-HH 3/8-16 X2.50 G5 Z&Y | 1 | $1.50 | |
| 14 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 15 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 16 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 17 | 0608-055 | SHIM,ENG MTG-.030 THK CT132 | 1 | $0.85 | |
| 18 | 0608-056 | SHIM,ENG MTG-.060 THK CT116 | 1 | $1.23 | |
| 19 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 20 | 8002-405 | SCREW,CAP-HH 1/2-13 X1.50 G5 Z&Y | 1 | $1.50 | |
| 21 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 22 | 0686-099 | HARNESS,ENGINE GROUND | 1 | $9.59 | |
| 23 | 0623-605 | WASHER,MOUNT-MOTOR | 1 | $4.95 | |
| 24 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 25 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 26 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 27 | 0708-034 | PLATE, BEARING MTG - MACH | 1 | $104.95 | |
| 28 | 0608-054 | MOUNT,ENGINE-REAR | 1 | $55.95 | |
| 30 | 0623-628 | SCREW,CAP-HH,3/8X16-1 3/8 ZY | 1 | $0.55 | |
| 31 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 32 | 8012-131 | SCREW,CAP-HHNLP 5/16-18X.875 G5 Z&Y | 1 | $0.45 | |
| 33 | 0623-265 | SCREW,FLANGE 12-PT-3/8-16X3/4 | 1 | $5.95 | |
| 34 | 0608-267 | MOUNT,ENGINE 60 DURO | 1 | $65.95 | |
| 35 | 0608-145 | MOUNT,ENG-FRONT-STEEL | 1 | $109.95 | |
| 36 | 0708-035 | BRKT,ENG MTG-MACH (RH REAR) | 1 | $63.95 |
