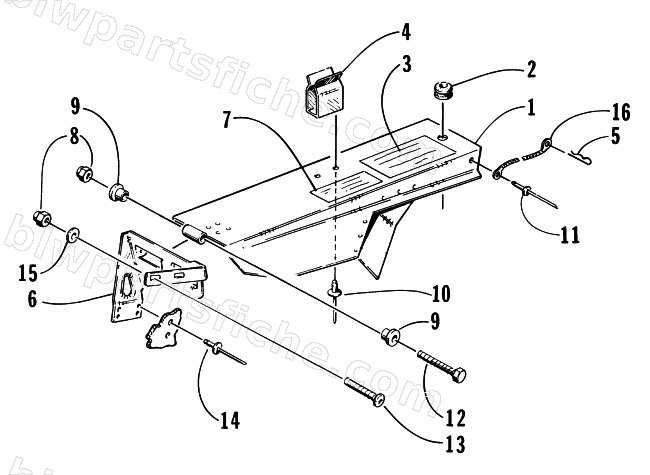

BELT GUARD ASSEMBLY
1997 ZR 580 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-841 | SHIELD,CLUTCH-ASS'Y-PTD BLK | 1 | $120.95 | |
| 2 | 0607-097 | GROMMET,GUARD | 1 | $1.92 | |
| 3 | 2611-496 | DECAL,CLUTCHING-97ZRC | 1 | $11.95 | |
| 4 | 0636-659 | KIT, DRIVE BELT HOLDER | 1 | $13.73 | |
| 5 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 6 | 0616-727 | BRKT,MTG.-BELT GUARD | 1 | $66.95 | |
| 7 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 8 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 9 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 10 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 11 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 12 | 8002-050 | SCREW,CAP-HH 1/4-20 X2.75 G5 Z&Y | 1 | $2.95 | |
| 13 | 0623-472 | SCREW, CAP HSBH 1/4X20X1- Z&Y | 1 | $0.95 | |
| 14 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 15 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 16 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 |
