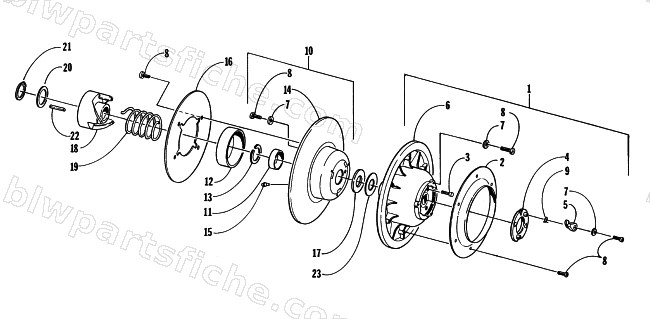

1997 Arctic Cat ZR 580 EFI — DRIVEN CLUTCH
1997 ZR 580 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0726-062 | CLUTCH,DRIVEN-NEW ARCTCO (DU BEARING) | 1 | $798.95 | |
| 2 | 0648-051 | COVER, STATIONARY SHEAVE | 1 | $17.95 | |
| 3 | 0648-034 | PIN,SHEAVE ADJUSTMENT | 1 | $13.73 | |
| 4 | 0648-033 | PLATE,SHEAVE ADJUSTMENT | 1 | $38.95 | |
| 5 | 0648-032 | ARM,SHEAVE ADJUSTMENT | 1 | $32.95 | |
| 6 | 0648-029 | SHEAVE,STATIONARY-MACH-DRVN CLUTCH | 1 | $306.95 | |
| 7 | 0623-594 | WASHER,FLAT-.203 X .562 X .040 | 1 | $0.95 | |
| 8 | 0623-526 | SCREW,SELF TAP-TSPNH 10-32X.375 TR Z&Y | 1 | $5.65 | |
| 9 | 0648-056 | SPRING, TORSION - ADJUSTMENT PLATE | 1 | $3.85 | |
| 10 | 0748-017 | SHEAVE,MOVEABLE-W/ BEARINGS (-081) | 1 | $293.95 | |
| 11 | 0648-009 | BEARING,DRIVEN CLUTCH 24DU08 | 1 | $19.25 | |
| 12 | 0648-054 | BEARING,OUTER-MACH.(VESPEL) | 1 | $146.95 | |
| 13 | 0623-583 | SNAP RING,INTL-1 11/16 DIA | 1 | $2.95 | |
| 15 | 0648-031 | BUTTON,TORQUE | 1 | $10.95 | |
| 16 | 0648-050 | COVER, MOVABLE SHEAVE | 1 | $18.95 | |
| 17 | 0648-035 | WASHER,FLAT-1.51 X 3.00 X .075 | 1 | $1.95 | |
| 18 | 0648-058 | CAM, DRIVEN CLUTCH - 46-37 MACH | 1 | $79.95 | |
| 18 | 0648-038 | CAM,DRIVEN CLUTCH-37 DEG.(MACH.) | 1 | $87.95 | |
| 19 | 0648-076 | SPRING, DRIVEN CLUTCH - GREEN | 1 | $62.95 | |
| 20 | 0148-198 | WASHER,FLAT-1.51 X 2.10 X .030 | 1 | $1.64 | |
| 23 | 0648-083 | WASHER,FLAT-1.51 X 3.00 X .030 | 1 | $4.95 |
