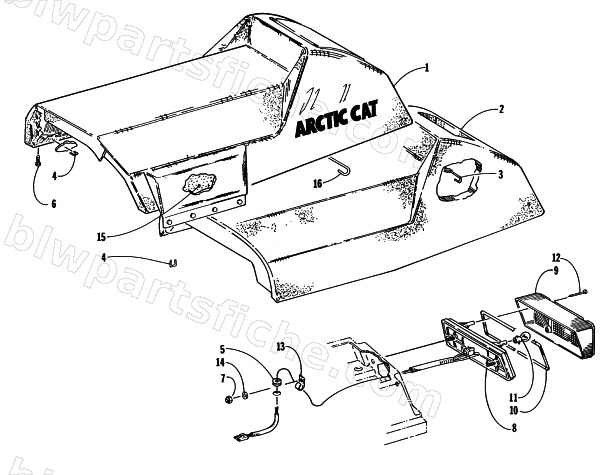

1997 Arctic Cat ZR 580 EFI — SEAT AND TAILLIGHT ASSEMBLIES
1997 ZR 580 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0716-608 | COVER, SEAT-W/DECAL ZR 580 EFI | 1 | $450.95 | |
| 2 | 0716-619 | FOAM,SEAT-ETT (LONG) | 1 | $307.95 | |
| 4 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 5 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 | |
| 6 | 0124-031 | SCREW,TAP HWH #10-24 X .375 | 1 | $13.73 | |
| 7 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 8 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 9 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 10 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 11 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 12 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 13 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 14 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 15 | 0616-750 | PAD,TUNNEL | 1 | $14.95 | |
| 16 | 1606-150 | WIRE, SEAT | 1 | $3.02 |
