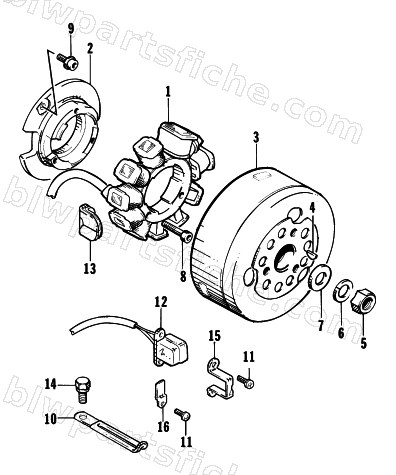

MAGNETO
1997 ZRT 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-317 | STATOR | 1 | $1,000.95 | |
| 2 | 3003-908 | BASE,STATOR | 1 | $192.95 | |
| 3 | 3005-044 | FLYWHEEL | 1 | $1,302.95 | |
| 4 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 5 | 3007-556 | NUT | 1 | $3.95 | |
| 6 | 3007-427 | LOCK WASHER | 1 | $4.40 | |
| 7 | 3005-175 | WASHER, 14.5X28X5 | 1 | $3.16 | |
| 8 | 3007-687 | BOLT,MAG STATOR 6X30 | 1 | $4.68 | |
| 9 | 3007-449 | BOLT | 1 | $3.16 | |
| 10 | 3004-787 | CLAMP,M6 | 1 | $4.26 | |
| 11 | 3007-553 | SCREW | 1 | $2.33 | |
| 12 | 3006-453 | SENSOR,IGNITION | 1 | $279.95 | |
| 13 | 3008-034 | GROMMET, LEAD WIRE,M10 | 1 | $17.87 | |
| 14 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 15 | 3003-972 | CLAMP | 1 | $24.77 | |
| 16 | 3002-317 | CLAMP,M3 | 1 | $2.95 |
