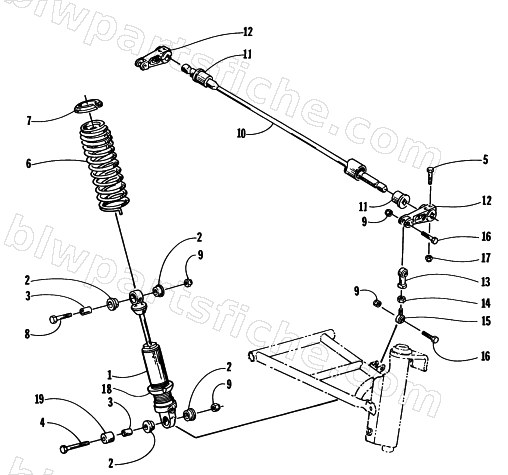

SHOCK ABSORBER AND SWAY BAR ASSEMBLY
1997 ZRT 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0603-896 | SHOCK ABSORBER-FRT SUSP-FOX ('97ZRF) | 1 | $619.95 | |
| 3 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 4 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 5 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 6 | 0603-837 | SPRING,SKI SHOCK-PTD BLACK | 1 | $89.95 | |
| 7 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 9 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 10 | 0703-202 | SWAY BAR, 7/16-PAINTED | 1 | $108.95 | |
| 11 | 0603-151 | BEARING,SWAY BAR-SQUARE | 1 | $23.39 | |
| 12 | 0603-558 | ARM,SWAYBAR-PTD BLK | 1 | $78.95 | |
| 13 | 0105-236 | BALL JOINT,TIE ROD (FEMALE) | 1 | $41.95 | |
| 14 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 15 | 0605-202 | ROD END-RH | 1 | $84.95 | |
| 16 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 17 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 18 | 0603-805 | ADJUSTER,SPRING-SHOCK (FOX)-THREADED BOD | 1 | $35.95 | |
| 19 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 |
