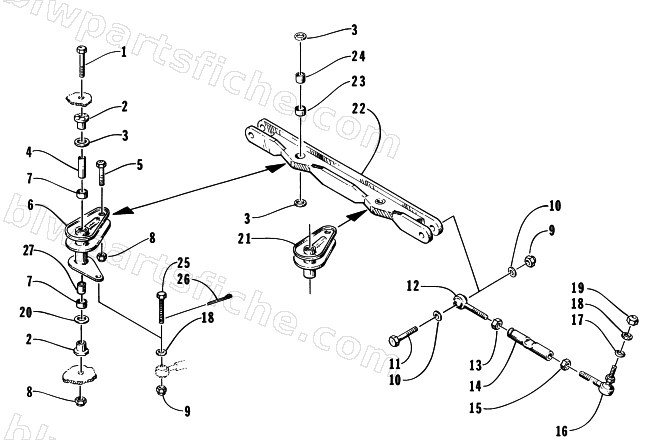

TIE ROD ASSEMBLY
1997 ZRT 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8002-235 | SCREW,CAP-HH 3/8-16 X4.50 G5 Z&Y | 1 | $1.95 | |
| 2 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 3 | 0605-065 | WASHER,SPACER-STRG | 1 | $4.68 | |
| 4 | 0605-254 | TUBE,AXLE-BELL | 1 | $5.95 | |
| 5 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 6 | 0705-181 | ARM,IDLER-STEERING-FABR | 1 | $74.95 | |
| 7 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 8 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 9 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 10 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 11 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 12 | 0605-202 | ROD END-RH | 1 | $84.95 | |
| 13 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 | |
| 14 | 0605-285 | TUBE,TIE ROD-SPINDLE - 7.80" W/FLATS | 1 | $25.95 | |
| 15 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 16 | 0605-073 | BALL JOINT,STEERING 3/8-24 LH | 1 | $79.95 | |
| 17 | 0605-014 | O-RING,RUBBER | 1 | $0.26 | |
| 18 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 19 | 0623-025 | NUT,LOCK3/8-24 NF | 1 | $3.16 | |
| 20 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 21 | 0705-180 | ARM,STEERING-FABR | 1 | $110.95 | |
| 22 | 0705-090 | DRAG LINK W/BEARINGS | 1 | $255.95 | |
| 23 | 0605-107 | BEARING,GARLOCK 10DU08 | 1 | $2.61 | |
| 24 | 0605-066 | AXLE,DRAG-LINK | 1 | $6.83 | |
| 26 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 27 | 0605-337 | SPACER, BELLCRANK | 1 | $29.95 |
