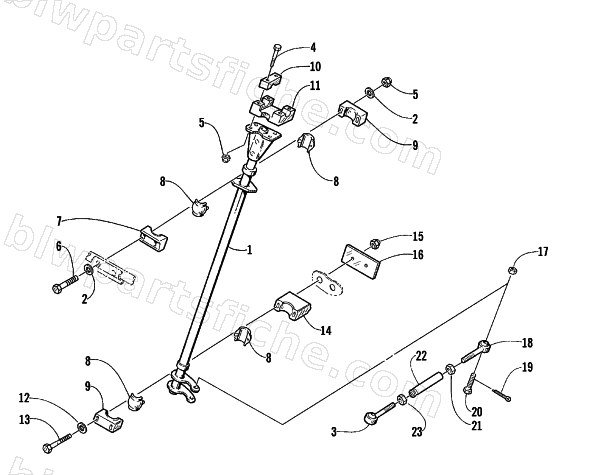

STEERING POST ASSEMBLY
1998 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1705-003 | POST,STEERING-PTD BLK | 1 | $123.95 | |
| 2 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 3 | 0605-202 | ROD END-RH | 1 | $84.95 | |
| 4 | 8002-047 | SCREW,CAP-HH 1/4-20 X2.00 G5 Z&Y | 1 | $0.95 | |
| 5 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 6 | 8002-052 | SCREW,CAP-HH 1/4-20 X3.25 G5 Z&Y | 1 | $0.95 | |
| 7 | 0705-064 | HSNG,BEARING-UPPER-PTD BLK | 1 | $19.25 | |
| 8 | 0605-149 | BEARING,STEERING POST | 1 | $3.02 | |
| 9 | 0605-171 | CAP, BEARING - STEERING POST | 1 | $19.95 | |
| 10 | 0105-350 | CAP,STEERING ADJUSTER | 1 | $19.79 | |
| 11 | 0105-351 | BLOCK,ADJUSTING-STEERING | 1 | $58.59 | |
| 12 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 13 | 0623-224 | SCREW,CAP -HH 5/16-18 X 3.75 ZN | 1 | $0.95 | |
| 14 | 0605-407 | HOUSING,BEARING-LOWER(99PROD) | 1 | $79.95 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 0605-217 | PLATE,BACKING-STEERING POST (L/C) | 1 | $12.35 | |
| 17 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 18 | 0605-203 | ROD END-LH | 1 | $72.95 | |
| 19 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 21 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 22 | 0605-251 | TUBE,TIE ROD-.625 X 12.44" (3/8-24) | 1 | $28.95 | |
| 23 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 |
