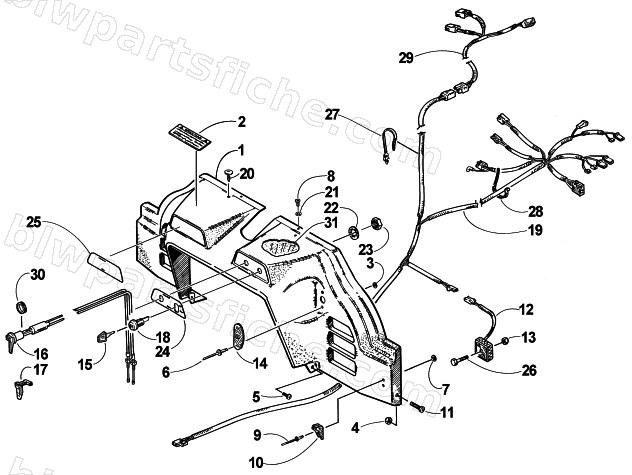

1998 Arctic Cat COUGAR DELUXE — CONSOLE, SWITCHES, AND WIRING ASSEMBLIES
1998 COUGAR DELUXE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-257 | CONSOLE | 1 | $445.95 | |
| 2 | 1611-408 | DECAL,WARNING-SEATING CAP. | 1 | $17.95 | |
| 3 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 6 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 7 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 8 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 9 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 10 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 11 | 8017-610 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z | 1 | $5.92 | |
| 12 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 13 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 0606-211 | PLATE,RECOIL | 1 | $19.25 | |
| 15 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 16 | 0687-007 | CABLE,CHOKE-DUAL | 1 | $84.95 | |
| 17 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 18 | 0609-278 | SWITCH, IGN.-E.S.-N.O. | 1 | $71.95 | |
| 19 | 0686-501 | HARNESS,MAIN ('98 ZR SKIN-L/C) | 1 | $274.95 | |
| 19 | 0686-438 | HARNESS,MAIN | 1 | $285.95 | |
| 20 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 20 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 21 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 22 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 23 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 24 | 2611-722 | DECAL,CONSOLE SWITCH-RH (CARB) | 1 | $20.95 | |
| 24 | 3611-012 | DECAL,CONSOLE SWITCH-RH | 1 | $18.95 | |
| 25 | 2611-979 | DECAL,CONSOLE-LH | 1 | $20.95 | |
| 26 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 27 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 28 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 29 | 0686-513 | HARNESS, HOOD-TACH/SPEEDO | 1 | $97.95 | |
| 30 | 0623-054 | NUT,PLASTIC-CHOKE | 1 | $4.40 | |
| 31 | 0617-178 | FOAM,CONSOLE RH | 1 | $5.95 |
