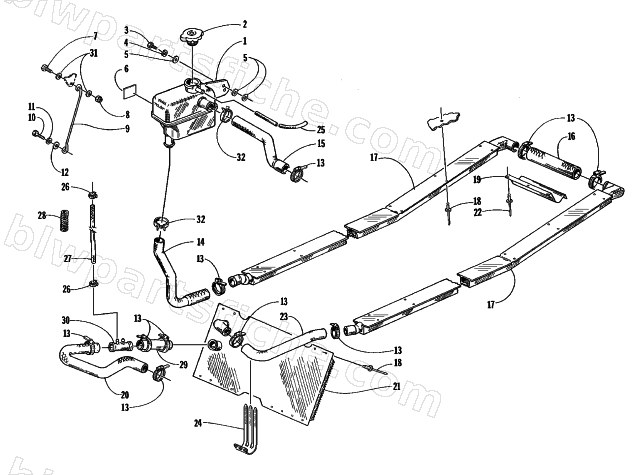

1998 Arctic Cat EXT 580 EFI DLX — COOLING ASSEMBLY
1998 EXT 580 EFI DLX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0670-494 | TANK,COOLANT-RESERVOIR | 1 | $63.95 | |
| 2 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 3 | 0623-420 | SCREW,HWH #10-24X5/8 Z&Y | 1 | $0.95 | |
| 4 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 5 | 0623-594 | WASHER,FLAT-.203 X .562 X .040 | 1 | $0.95 | |
| 6 | 2611-758 | DECAL,FILL LEVEL-COOLANT TANK | 1 | $11.95 | |
| 7 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 8 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 9 | 0610-276 | RKT,SUPPORT-RESERVOIR (WIRE FORM) | 1 | $6.95 | |
| 10 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 11 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 12 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 13 | 0214-015 | CLAMP,HOSE-#16/#17 | 1 | $2.19 | |
| 14 | 0610-275 | HOSE,TANK/RH HEAT EXCHANGER | 1 | $32.95 | |
| 15 | 0610-221 | HOSE,ENGINE TO COOLANT TANK (580 ZR) | 1 | $41.95 | |
| 16 | 0610-215 | HOSE,COOLANT-REAR EXCH | 1 | $30.95 | |
| 17 | 0716-596 | HEAT EXCHANGER-WELD-RH | 1 | $351.95 | |
| 17 | 0716-589 | HEAT EXCHANGER,WELD'T-LH | 1 | $261.95 | |
| 18 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 19 | 0616-810 | GUARD,COOLANT HOSE | 1 | $20.95 | |
| 20 | 0610-175 | HOSE,PUMP TO FRONT EXCHANGER | 1 | $39.95 | |
| 21 | 0716-171 | HEAT EXCHANGER,FRONT-WELDMENT | 1 | $306.95 | |
| 22 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 23 | 0610-253 | HOSE,COOLANT-FRT. EXCH. TO LH STRIP | 1 | $59.95 | |
| 24 | 0623-540 | TIE, CABLE-TRIPLE | 1 | $1.78 | |
| 25 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 26 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 27 | 0610-076 | HOSE, WATER-10 FT {0619-124} | 1 | $65.95 | |
| 28 | 0610-082 | COVER,HOSE-INNER BALANCE HOSE | 1 | $2.95 | |
| 29 | 0610-037 | HOSE,FILLER NECK TO ENGINE | 1 | $23.95 | |
| 30 | 0616-065 | DOUBLE T FITTING,ONE OPENING | 1 | $11.95 | |
| 31 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 |
