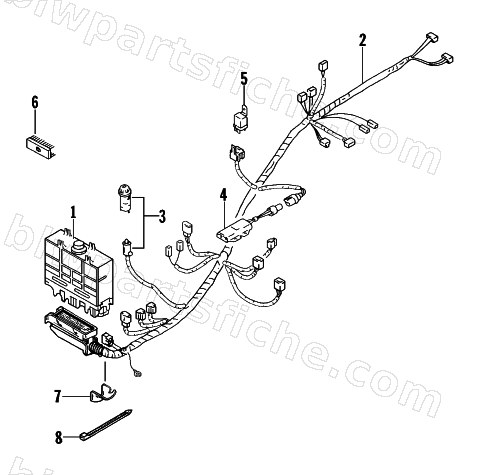

1998 Arctic Cat EXT 580 EFI DLX — ECU AND ECU HARNESS ASSEMBLIES
1998 EXT 580 EFI DLX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-059 | R/B 3005-039 | 1 | $1,929.39 | |
| 1 | 3005-040 | ECU,YEL-JEFI | 1 | $2,719.95 | |
| 1 | 3005-061 | R/B 3005-041 | 1 | $1,680.95 | |
| 2 | 3005-204 | HARNESS, FUEL INJECTION | 1 | $909.95 | |
| 3 | 3005-063 | LAMP ASSY, LED | 1 | $106.95 | |
| 4 | 3004-709 | RESISTOR ASS'Y INJECTOR | 1 | $160.79 | |
| 6 | 3005-036 | EPROM, RED SSC297 (REF 3004-933) | 1 | $513.95 | |
| 6 | 3005-037 | EPROM, YEL SSC297 (REF 3004-934) | 1 | $381.95 | |
| 6 | 3005-038 | EPROM, BLU SSC297 (REF 3004-935) | 1 | $381.95 | |
| 6 | 3005-092 | EPROM, RED-ETHANOL (SSC297) | 1 | $381.95 | |
| 6 | 3005-093 | EPROM, YEL-ETHANOL (SSC297) | 1 | $360.95 | |
| 6 | 3005-094 | EPROM, BLU-ETHANOL (SSC297) | 1 | $345.95 | |
| 7 | 0686-400 | CLAMP, HARNESS (JEFI 3005-046 ) | 1 | $10.95 | |
| 8 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
