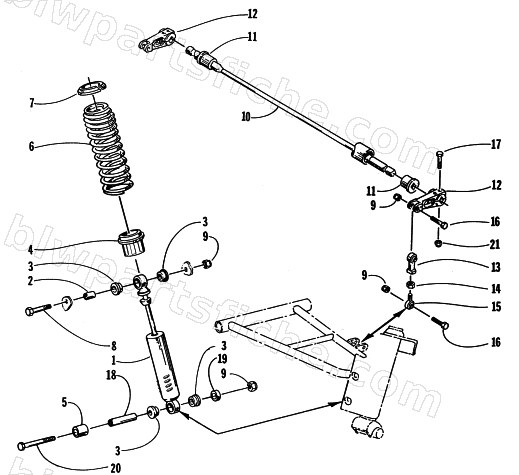

1998 Arctic Cat EXT 580 EFI — SHOCK ABSORBER AND SWAY BAR ASSEMBLY
1998 EXT 580 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-201 | SHOCK,SKI - THREADED BODY | 1 | $305.95 | |
| 2 | 0604-309 | SLEEVE,SHOCK ABSORBER | 1 | $2.33 | |
| 3 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 4 | 1603-215 | NUT, RETAINER -SPRING -THD SHOCK | 1 | $10.97 | |
| 5 | 0603-855 | SPACER, SHOCK MTG - REAR | 1 | $3.99 | |
| 6 | 0703-597 | SPRING,COMP. 90# - PTD GREEN | 1 | $69.95 | |
| 7 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 9 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 10 | 0703-202 | SWAY BAR, 7/16-PAINTED | 1 | $108.95 | |
| 11 | 0603-151 | BEARING,SWAY BAR-SQUARE | 1 | $23.39 | |
| 12 | 0603-558 | ARM,SWAYBAR-PTD BLK | 1 | $78.95 | |
| 13 | 0105-236 | BALL JOINT,TIE ROD (FEMALE) | 1 | $41.95 | |
| 14 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 15 | 0605-202 | ROD END-RH | 1 | $84.95 | |
| 16 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 17 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 18 | 1604-184 | SLEEVE, SHOCK ABSORBER | 1 | $42.95 | |
| 19 | 0603-854 | SPACER, SHOCK MTG - FRT | 1 | $13.73 | |
| 20 | 8002-234 | SCREW,CAP-HH 3/8-16 X4.00 G5 Z&Y | 1 | $1.50 | |
| 21 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 |
