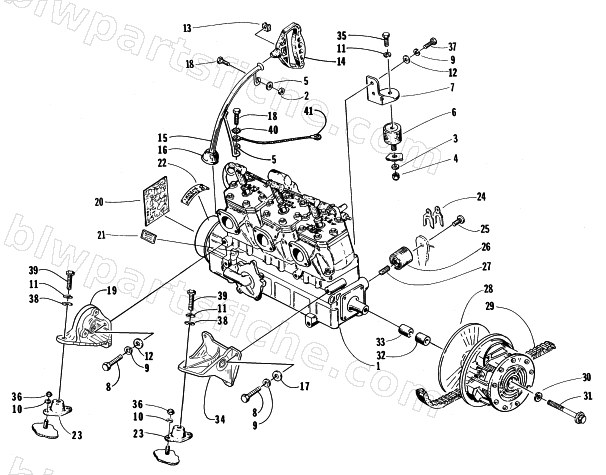

1998 Arctic Cat EXT 600 TOUR — ENGINE AND RELATED PARTS
1998 EXT 600 TOUR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-236 | ENGINE,600 L/C (99) | 1 | $3,152.95 | |
| 2 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 3 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 4 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 5 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 6 | 0608-267 | MOUNT,ENGINE 60 DURO | 1 | $65.95 | |
| 7 | 0708-025 | BRKT,ENG MTG-REAR (MACH) | 1 | $40.95 | |
| 8 | 8012-132 | SCREW,CAP-HHNLP 5/16-18X1.0 G5 Z&Y | 1 | $0.65 | |
| 9 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 10 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 11 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 12 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 13 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 14 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 15 | 0708-031 | GUIDE,RECOIL ROPE-WELD'T | 1 | $79.95 | |
| 16 | 0603-148 | BOOT,DUST-BALL JOINT | 1 | $17.95 | |
| 17 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 18 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 19 | 0745-094 | BRKT, ENG MTG-RH-FRONT W/ BUSHING-ES | 1 | $176.95 | |
| 20 | 0706-990 | FOIL 6 X12 (0619-727) | 1 | $16.95 | |
| 21 | 2611-871 | DECAL,ENGINE P/N 0662-210 (98ETA) | 1 | $6.95 | |
| 23 | 0608-162 | MOUNT,ENGINE-40 DURO. | 1 | $66.95 | |
| 24 | 0608-055 | SHIM,ENG MTG-.030 THK CT132 | 1 | $0.85 | |
| 24 | 0608-056 | SHIM,ENG MTG-.060 THK CT116 | 1 | $1.23 | |
| 25 | 0623-295 | SCREW,CAP-HSBH 1/2-13X3/4 Z&Y | 1 | $9.95 | |
| 26 | 0608-075 | MOUNT,ENGINE-REAR (90DURO) | 1 | $94.95 | |
| 28 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 29 | 0627-020 | BELT,DRIVE-CVT 12.2" CTRS. | 1 | $133.95 | |
| 30 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 31 | 0623-206 | BOLT,COUNTERBORE-1/2-20X5.5 | 1 | $20.63 | |
| 32 | 0646-106 | SPACER,URETHANE-CLUTCH | 1 | $5.09 | |
| 33 | 0646-107 | SPACER,ALUMINUM-CLUTCH | 1 | $29.95 | |
| 34 | 0745-088 | BRKT,ENG MTG-LH FRT-W/ BUSHING-ES | 1 | $98.95 | |
| 35 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 36 | 0623-422 | NUT,FLEXLOCK-5/16-18 UNC Z&Y | 1 | $1.50 | |
| 37 | 8012-131 | SCREW,CAP-HHNLP 5/16-18X.875 G5 Z&Y | 1 | $0.45 | |
| 38 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 39 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 40 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 41 | 0686-099 | HARNESS,ENGINE GROUND | 1 | $9.59 |
