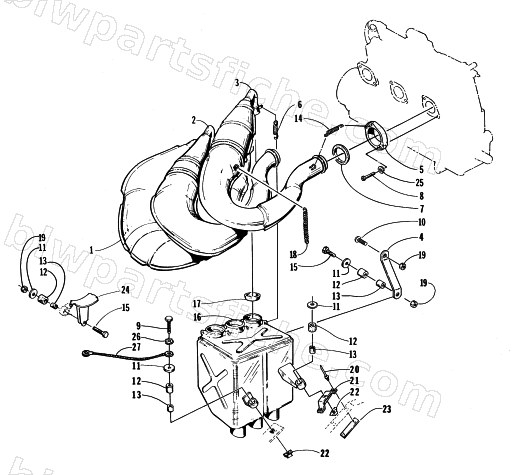

1998 Arctic Cat EXT 600 TOUR — EXHAUST ASSEMBLY
1998 EXT 600 TOUR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0712-219 | CHAMBER,EXP-MAG-WELDT ('97 600 TRIPLE) | 1 | $567.95 | |
| 2 | 0712-220 | CHAMBER,EXP-CEN-WELDT ('97 600 TRIPLE) | 1 | $665.95 | |
| 3 | 0712-221 | CHAMBER,EXP-PTO-WELDT ('97 600 TRIPLE) | 1 | $718.95 | |
| 4 | 0612-479 | BRKT,MTG-RESONATOR-OUTER | 1 | $15.11 | |
| 5 | 0612-665 | MANIFOLD,EXHAUST | 1 | $75.95 | |
| 6 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 7 | 0612-666 | GASKET,EXHAUST-HEADER JOINT | 1 | $29.95 | |
| 9 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 10 | 0623-472 | SCREW, CAP HSBH 1/4X20X1- Z&Y | 1 | $0.95 | |
| 11 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 12 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 14 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 15 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 16 | 0712-187 | RESONATOR,EXHAUST-PTD BLK | 1 | $500.95 | |
| 17 | 0612-887 | GASKET,EXHAUST - TAIL PIPE (1.275 I.D.) | 1 | $32.95 | |
| 18 | 0623-473 | SPRING,EXTENSION | 1 | $15.11 | |
| 19 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 20 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 21 | 0707-184 | BRKT,RES. MOUNT-WELD'T | 1 | $28.95 | |
| 22 | 0623-157 | RETAINER NUT,1/4-20 | 1 | $3.85 | |
| 23 | 0607-429 | PLATE,BACKING-RESONATOR MOUNT | 1 | $1.37 | |
| 25 | 0623-710 | WASHER,LOCK HI-COLLAR METRIC | 1 | $0.40 |
