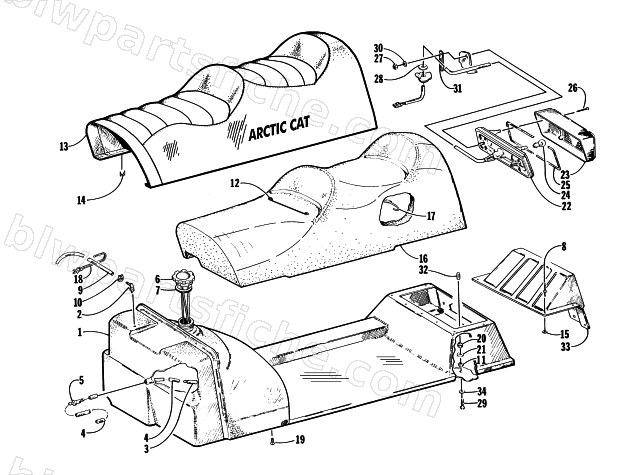

1998 Arctic Cat EXT 600 TOUR — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
1998 EXT 600 TOUR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-262 | TANK, GAS-ASSY 98 EXT 600 TOUR | 1 | $366.95 | |
| 2 | 0670-572 | VENT,GAS TANK | 1 | $3.95 | |
| 3 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 4 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 4 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 5 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 6 | 0670-525 | CAP,GAS-W/GAUGE | 1 | $84.95 | |
| 7 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 8 | 8061-428 | RIVET,BLIND-LF AA56 BLACK | 1 | $1.64 | |
| 10 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 11 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 13 | 0716-751 | COVER,SEAT-W/A.C. | 1 | $522.95 | |
| 14 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 15 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 16 | 0716-572 | FOAM,SEAT CUSHION-2-UP | 1 | $261.95 | |
| 18 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 19 | 0124-031 | SCREW,TAP HWH #10-24 X .375 | 1 | $13.73 | |
| 20 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 22 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 23 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 24 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 25 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 26 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 27 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 28 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 | |
| 29 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 30 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 31 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 33 | 0616-060 | EXTENSION, TOOL BOX 121 | 1 | $79.95 | |
| 34 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 |
