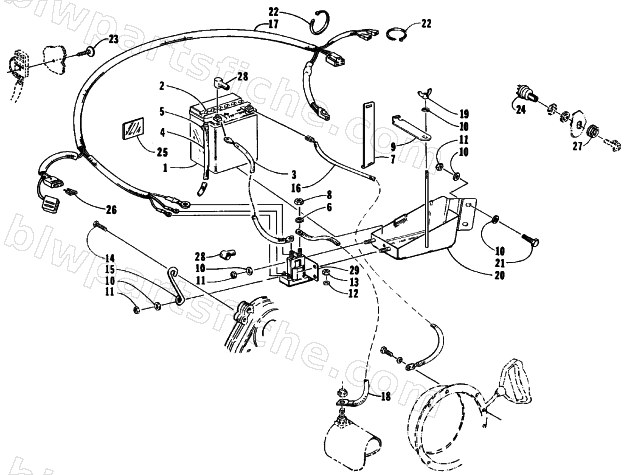

BATTERY, SOLENOID, AND CABLES
1998 JAG 340 DELUXE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1639-487 | KIT, ELECTRIC START-'00 PAN/340-Z/370 | 1 | $658.95 | |
| 1 | 0745-045 | BATTERY PKG (0645-165) | 1 | $124.95 | |
| 2 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 3 | 0645-142 | CABLE, BATT-SOL 9" | 1 | $54.95 | |
| 4 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 5 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 6 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 7 | 0645-245 | STRAP, BATTERY HOLDOWN-SIDE | 1 | $33.95 | |
| 8 | 8043-452 | NUT,5/16-24 HEX LOCK-MET TOP LOC GRA Z&Y | 1 | $0.95 | |
| 9 | 0645-243 | STRAP, BATTERY HOLDOWN-TOP | 1 | $16.49 | |
| 10 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 11 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 13 | 8042-272 | NUT,10-32 HEX-REG-GR2 Z&Y | 1 | $0.15 | |
| 14 | 0623-640 | SCREW,SELF TAP-HWH 5/16-18X1.0-TT Z & Y | 1 | $0.85 | |
| 15 | 0645-247 | SUPPORT, BATTERY TRAY ('97 PUMA/JAG) | 1 | $23.39 | |
| 16 | 0645-080 | CABLE,BATT-GRD 30 | 1 | $30.95 | |
| 17 | 0686-516 | HARNESS,ES-NO IGN(RB 0686-696) | 1 | $86.95 | |
| 18 | 0645-244 | CABLE, 56" - SOL. TO STARTER | 1 | $64.95 | |
| 19 | 0623-325 | NUT,WING - 1/4-20 NYLON SL | 1 | $2.06 | |
| 20 | 0745-076 | TRAY, BATTERY-WELD'T | 1 | $89.95 | |
| 21 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 22 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 23 | 0623-589 | CLIP,RETAINING-.191X.700 | 1 | $2.75 | |
| 24 | 0609-278 | SWITCH, IGN.-E.S.-N.O. | 1 | $71.95 | |
| 25 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 26 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 27 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 28 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 29 | 0645-196 | SOLENOID,ELECTRIC START | 1 | $69.95 | |
| 30 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 31 | 0645-151 | LABEL, WARNING-BATTERY | 1 | $10.97 |
