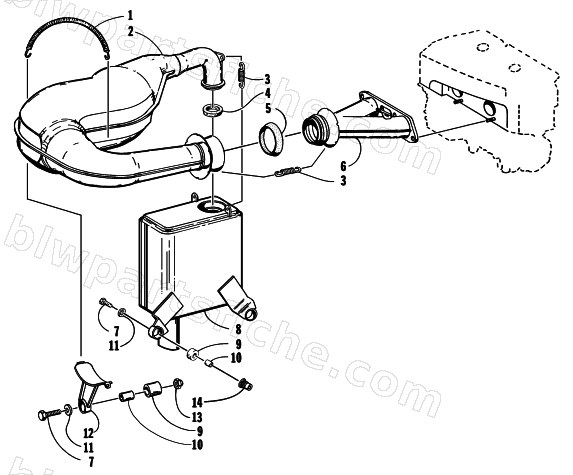

EXHAUST ASSEMBLY
1998 JAG 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0612-027 | SPRING EXTENSION | 1 | $27.95 | |
| 2 | 0712-211 | CHAMBER, EXP-WELDT | 1 | $458.95 | |
| 3 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 4 | 0612-188 | GASKET,EXH.-TAIL PIPE | 1 | $32.95 | |
| 5 | 0612-131 | GASKET,EXHAUST-HEADER JOINT | 1 | $29.95 | |
| 6 | 0712-209 | MANIFOLD, EXHAUST-WELDT | 1 | $123.95 | |
| 7 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 8 | 0712-249 | RESONATOR,EXHAUST-WELDT (98JAA) | 1 | $363.95 | |
| 9 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 11 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 12 | 0712-224 | BRKT,SUPPORT-EXP CHAMBER-WELDT | 1 | $15.95 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 |
