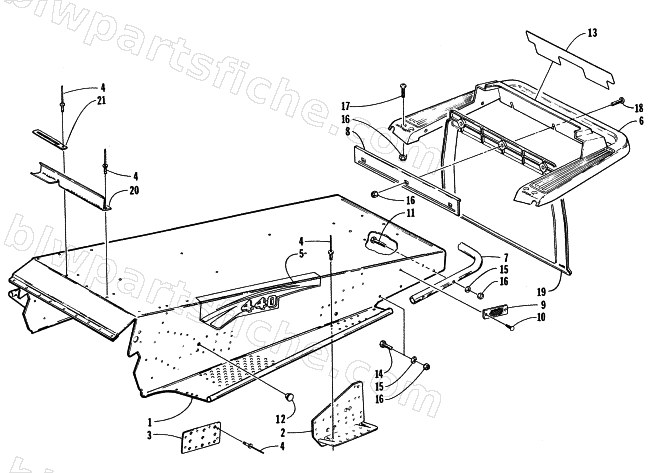

1998 Arctic Cat JAG 440 — TUNNEL AND REAR BUMPER
1998 JAG 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-544 | TUNNEL-ASSY 97 PU/PU DL/JA/JA DL | 1 | $1,065.95 | |
| 2 | 2706-608 | BRACKET,SUSP.RH-PTD BLK | 1 | $92.95 | |
| 2 | 2706-609 | BRACKET,SUSP.LH-PTD BLK | 1 | $92.95 | |
| 3 | 2706-111 | PLATE,BODY-REINFORCEMENT-PTD BLK | 1 | $14.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 5 | 2611-926 | DECAL,TUNNEL-RH | 1 | $63.95 | |
| 5 | 2611-927 | DECAL,TUNNEL-LH | 1 | $63.95 | |
| 6 | 0716-223 | BUMPER W/STEEL INSERT | 1 | $181.95 | |
| 6 | 0616-731 | BUMPER,REAR | 1 | $164.95 | |
| 7 | 2706-600 | INSERT,BUMPER-PTD BLK | 1 | $64.95 | |
| 9 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 10 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 11 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 12 | 0606-983 | PLUG,BODY 3/8-BLACK | 1 | $1.92 | |
| 13 | 3611-009 | DECAL,FASTRACK SYS/WARNING(TOWING) | 1 | $32.95 | |
| 14 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 15 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 17 | 8019-585 | SCREW,MACH-TSPNH 1/4-20 X 1 1/2 GR2 Z&Y | 1 | $0.55 | |
| 18 | 8017-582 | R/B 1623-689 | 1 | $0.65 | |
| 19 | 0606-744 | SNOWFLAP-30 DG PLASTIC-PLA | 1 | $45.95 | |
| 20 | 0607-488 | BRCKT, MAIN HARNESS PROTECTOR | 1 | $16.49 | |
| 21 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
