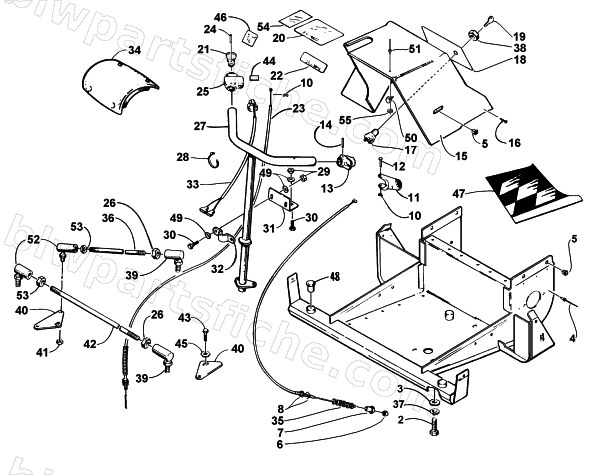

STEERING, FRONT FRAME, AND CONSOLE
1998 KITTY CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0302-119 | WLDMT,FRONT END | 1 | $1,217.95 | |
| 2 | 8002-220 | SCREW,CAP-HH 3/8-16 X.75 G5 Z&Y | 1 | $0.95 | |
| 3 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 4 | 8060-286 | RIVET,BLIND-DH SS44 ZINC | 1 | $0.68 | |
| 5 | 0123-534 | NUT,EXPANSION 8-18 | 1 | $0.40 | |
| 6 | 0300-215 | JAM NUT | 1 | $0.15 | |
| 7 | 0300-210 | NUT, ADJUSTING | 1 | $51.95 | |
| 8 | 0123-406 | NUT,FLANGE 5/16-24 | 1 | $0.55 | |
| 9 | 0302-093 | CABLE,BRAKE | 1 | $124.95 | |
| 10 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 11 | 0302-085 | LEVER,HAND GRIP | 1 | $14.95 | |
| 12 | 1623-828 | PIN, 1/4D X 1 5/8 | 1 | $12.35 | |
| 13 | 0302-147 | HOUSING,BRAKE CONTROL | 1 | $20.63 | |
| 14 | 8070-318 | PIN,SPRING-3/16 X 1-1/2 SLOTTED P&O | 1 | $0.95 | |
| 16 | 0300-208 | SCREW,SELF TAP-HWH #8 X 3/4 AB BLK | 1 | $0.65 | |
| 17 | 0109-822 | SWITCH,IGNITION | 1 | $68.95 | |
| 18 | 2611-567 | DECAL, SWITCH PLATE | 1 | $134.95 | |
| 19 | 0116-065 | KEY,IGNITION | 1 | $8.21 | |
| 20 | 2611-592 | DECAL,CAUTION-KC CONSOLE | 1 | $160.95 | |
| 21 | 0109-960 | CAP HANDLE BAR END | 1 | $41.95 | |
| 22 | 2611-462 | DECAL.CAUTION-(THROTTLE) CONSOLE | 1 | $6.95 | |
| 23 | 0687-134 | CABLE,THROTTLE-KITTY CAT | 1 | $69.95 | |
| 24 | 8070-222 | PIN,SPRING-1/8 X 7/8 SLOTTED P&O | 1 | $1.95 | |
| 25 | 0302-165 | HOUSING,THROTTLE CONTROL | 1 | $23.39 | |
| 26 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 27 | 0302-084 | HANDLE, STEERING | 1 | $129.95 | |
| 28 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 29 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 30 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 31 | 0300-159 | BRACKET,STEERING | 1 | $6.95 | |
| 32 | 0300-140 | CLAMP,STEERING | 1 | $26.95 | |
| 33 | 0609-007 | SWITCH,STOP-ENGINE | 1 | $54.95 | |
| 35 | 0687-027 | SPRING,BRAKE CABLE-COMPRESSION | 1 | $27.95 | |
| 36 | 0605-288 | ROD,TIE-RIGHT | 1 | $61.95 | |
| 37 | 8051-272 | WASHER,SPR LOCK-3/8 .377X.680X.094 Z&Y | 1 | $0.12 | |
| 38 | 0609-111 | NUT,RETAINING-5/8-32UN2B BLK PLASTIC | 1 | $6.47 | |
| 39 | 0605-686 | BALL JOINT ASSY-RH | 1 | $43.95 | |
| 40 | 0302-162 | SPINDLE CRANK | 1 | $22.01 | |
| 41 | 8041-516 | NUT,HEX THIN LOCK-NYL 3/8-24 Z&Y | 1 | $0.25 | |
| 42 | 0605-287 | ROD,TIE-FRONT | 1 | $56.95 | |
| 43 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 44 | 0611-022 | DECAL,SWITCH-EMERGENCY STOP | 1 | $3.44 | |
| 45 | 0124-061 | WASHER,PYRAMIDAL-TOOTH | 1 | $2.49 | |
| 46 | 2611-593 | DECAL,FUEL MIX | 1 | $5.71 | |
| 47 | 2611-564 | DECAL,CONSOLE-RH | 1 | $27.95 | |
| 47 | 2611-565 | DECAL,CONSOLE-LH | 1 | $27.95 | |
| 48 | 0302-088 | BUSHING,SPINDLE-NYLON KC | 1 | $16.49 | |
| 49 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 50 | 0123-397 | CLAMP CABLE NYLON 5/16 | 1 | $0.75 | |
| 52 | 0605-685 | BALL JOINT ASSY-LH | 1 | $49.95 | |
| 53 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 54 | 2611-642 | DECAL,CONSOLE-LOWER RH | 1 | $6.95 | |
| 55 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 |
