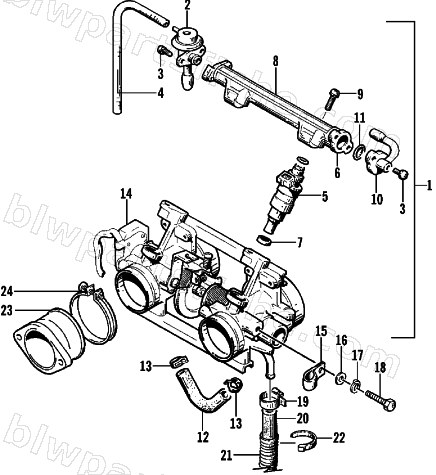

THROTTLE BODY ASSEMBLY
1998 PANTERA 580
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-050 | BODY ASSY, THROTTLE(RED) | 1 | $2,567.95 | |
| 1 | 3005-051 | BODY ASSY, THROTTLE(YELLOW) | 1 | $2,382.95 | |
| 2 | 3004-094 | REGULATOR, FUEL PRESSURE | 1 | $424.95 | |
| 3 | 3007-553 | SCREW | 1 | $2.33 | |
| 5 | 3003-958 | INJECTOR-UPPER(RED) | 1 | $627.95 | |
| 5 | 3003-959 | INJECTOR-CENTER(YEL) | 1 | $553.95 | |
| 5 | 3003-960 | INJECTOR-LOWER(BLUE) | 1 | $490.95 | |
| 8 | 3004-401 | PIPE, DELIVERY | 1 | $638.95 | |
| 9 | 3007-568 | SCREW | 1 | $3.16 | |
| 10 | 3004-120 | PIPE, FUEL INLET | 1 | $422.95 | |
| 11 | 3004-195 | O-RING-(USE 3005-703 KIT) | 1 | $21.95 | |
| 12 | 3004-194 | HOSE, WATER-EFI THROTTLE BODY | 1 | $29.95 | |
| 13 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 | |
| 15 | 0123-269 | CLAMP,CABLE,11/16 INSUL | 1 | $2.75 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 18 | 0145-105 | SCREW M6X14MM | 1 | $0.55 | |
| 19 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 20 | 0610-076 | HOSE, WATER-10 FT {0619-124} | 1 | $65.95 | |
| 21 | 0610-082 | COVER,HOSE-INNER BALANCE HOSE | 1 | $2.95 | |
| 22 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 23 | 3003-854 | PIPE,INTAKE | 1 | $159.95 | |
| 24 | 3004-463 | CLAMP,M58 | 1 | $34.95 |
