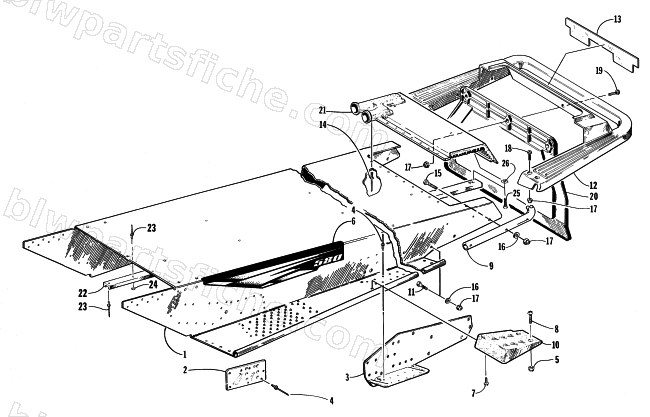

1998 Arctic Cat PANTERA 580 — TUNNEL AND REAR BUMPER ASSEMBLY
1998 PANTERA 580
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-617 | TUNNEL-ASSY 98 PTA 580 | 1 | $1,269.95 | |
| 2 | 2706-277 | PLATE,BODY REINF-PTD BLK | 1 | $27.95 | |
| 3 | 0716-684 | BRKT,SUSP-RH-WELD'T | 1 | $71.95 | |
| 3 | 0716-685 | BRKT,SUSP-LH-WELD'T | 1 | $74.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 5 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 6 | 2611-954 | DECAL,TUNNEL-RH | 1 | $57.95 | |
| 6 | 2611-955 | DECAL,TUNNEL-LH | 1 | $63.95 | |
| 8 | 8017-577 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 Z&Y | 1 | $1.23 | |
| 9 | 2706-600 | INSERT,BUMPER-PTD BLK | 1 | $64.95 | |
| 10 | 0606-698 | FOOTREST,REAR-R.H. | 1 | $33.95 | |
| 10 | 0606-699 | FOOTREST,REAR-L.H. | 1 | $33.95 | |
| 11 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 12 | 0716-223 | BUMPER W/STEEL INSERT | 1 | $181.95 | |
| 12 | 0616-731 | BUMPER,REAR | 1 | $164.95 | |
| 13 | 3611-009 | DECAL,FASTRACK SYS/WARNING(TOWING) | 1 | $32.95 | |
| 14 | 0123-784 | RIVET3/16X1/4 SSPQ-64 | 1 | $1.19 | |
| 15 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8007-585 | SCREW,MACH-CRTH 1/4-20X1.50 G2 Z&Y | 1 | $0.40 | |
| 19 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 20 | 0616-613 | SNOWFLAP,REV- | 1 | $68.95 | |
| 22 | 0706-740 | WEARSTRIP,TUNNEL | 1 | $46.95 | |
| 23 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 24 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 25 | 8019-577 | SCREW,MACH-TSPNH 1/4-20 X 1/2 GR2 Z&Y | 1 | $0.55 | |
| 26 | 0623-076 | NUT,SQUARE 1/4-20 | 1 | $22.01 |
