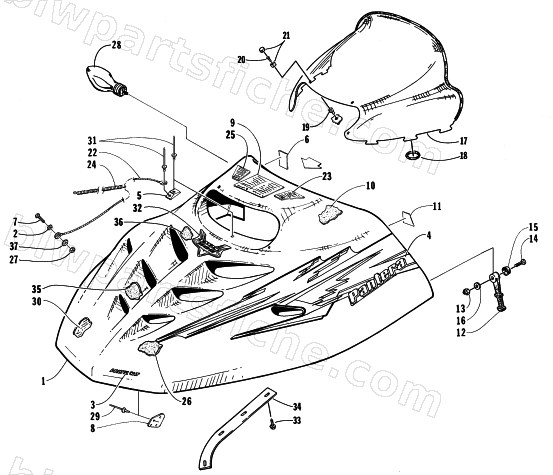

1998 Arctic Cat PANTERA 800 — HOOD AND WINDSHIELD ASSEMBLY
1998 PANTERA 800
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-631 | HOOD, W/O DECAL 98 PTA 800 | 1 | $1,652.95 | |
| 1 | 0718-609 | HOOD W/DECALS-98 PTA 800 | 1 | $2,088.95 | |
| 2 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 3 | 2611-556 | DECAL, HOOD - "ARCTIC CAT" | 1 | $20.95 | |
| 4 | 2611-964 | DECAL,HOOD-RH | 1 | $91.95 | |
| 4 | 2611-965 | DECAL,HOOD-LH | 1 | $91.95 | |
| 5 | 1606-088 | BRKT,HOOD CABLE | 1 | $6.95 | |
| 6 | 2611-309 | DECAL,REVERSE | 1 | $16.95 | |
| 7 | 8005-404 | SCREW, CAP-HSH 10-24X1.25 Z&Y | 1 | $0.95 | |
| 8 | 0616-567 | BRKT,HINGE-HOOD | 1 | $47.95 | |
| 9 | 1611-575 | DECAL,WARNING-HOOD | 1 | $25.95 | |
| 10 | 0717-062 | FOAM,HOOD-UPPER-RH | 1 | $13.95 | |
| 10 | 0717-063 | FOAM,HOOD-UPPER-LH | 1 | $13.95 | |
| 11 | 2611-158 | DECAL,CAUTION-ENGINE/BATTERY | 1 | $17.95 | |
| 12 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 8009-614 | SCREW,MACH-CRPH 1/4-20X1.25 G2 Z&BLK | 1 | $0.25 | |
| 15 | 0623-261 | WASHER,CUP-1/4 X 1-BLK | 1 | $22.01 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 0616-959 | WINDSHIELD, SMOKE | 1 | $149.95 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 20 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 21 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 22 | 0616-326 | CABLE,HOOD - 43" | 1 | $15.11 | |
| 23 | 1611-781 | DECAL,WARNING HYD. BRAKE-ENGLISH | 1 | $68.95 | |
| 24 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 25 | 1611-780 | DECAL,WARNING HYD. BRAKE-FRENCH | 1 | $129.95 | |
| 26 | 0717-070 | FOAM,HOOD-RH | 1 | $32.95 | |
| 26 | 0717-071 | FOAM,HOOD-LH | 1 | $29.95 | |
| 27 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 29 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 30 | 0616-753 | FOIL,HOOD-LOWER | 1 | $20.95 | |
| 31 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 32 | 2611-969 | DECAL,HOOD-CENTER | 1 | $25.95 | |
| 33 | 0623-505 | SCREW,SELF TAP-HWH #6X5/8 TYP A Z&Y | 1 | $0.15 | |
| 34 | 0616-915 | GUARD,HEAT ELEC HARNESS | 1 | $58.95 | |
| 35 | 0717-060 | FOAM,HOOD-CENTER-RH | 1 | $5.95 | |
| 35 | 0717-061 | FOAM,HOOD-CENTER-LH | 1 | $5.95 | |
| 36 | 0717-072 | FOAM,HOOD-UPPER-CENTER-RH | 1 | $14.95 | |
| 36 | 0717-073 | FOAM,HOOD-UPPER-CENTER-LH | 1 | $14.95 | |
| 37 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 |
