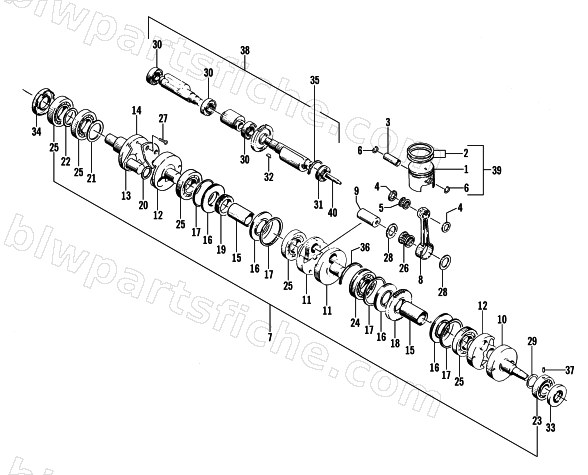

PISTON AND CRANKSHAFT

1998 PANTERA 800

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3004-762	PISTON ASSY,800 L/C X 3	1	$292.95
2	3004-528	RING SET,800L/C	1	$100.95
3	3003-767	PIN,PISTON	1	$38.95
4	3005-209	WASHER,20MM	1	$13.73
5	3003-433	BEARING,PISTON PIN,ROLLER,M20X26X24	1	$42.95
6	3003-439	CIRCLIP,PISTON PIN,M20	1	$3.16
7	3005-644	CRANKSHAFT ASSY.	1	$5,981.95
8	3004-888	ROD,CONNECTING	1	$220.95
9	3004-700	PIN,CRANK	1	$85.95
10	3005-645	CRANKSHAFT,RH	1	$560.95
11	3004-754	CRANKSHAFT,M	1	$472.95
12	3005-647	CRANKSHAFT,MIDDLE NO 2	1	$470.95
13	3004-890	CRANKSHAFT-LH	1	$555.95
14	3004-165	BALANCER,CRANKSHAFT	1	$30.95
15	3005-312	PIPE, CRANKSHAFT JOINT	1	$342.95
16	3004-167	RACE, MIDDLE CRANK SEAL	1	$102.95
18	3005-314	GEAR,BALANCER SHAFT DRIVE	1	$224.95
19	3004-178	GEAR, DRIVE-OIL PUMP	1	$324.95
20	3004-701	WASHER,30MM	1	$22.01
21	3004-204	WASHER, CRANK BEARING,52MM	1	$16.95
22	3004-148	SHIM, M45X58 0.5	1	$6.47
24	3004-151	BEARING,BALL,M45X90X19	1	$233.95
25	3004-152	BEARING,BALL,M45X90X19	1	$193.95
26	3007-532	BEARING,CRANK PIN	1	$180.95
27	3007-440	SCREW	1	$2.06
28	3005-145	SHIM,30MM	1	$7.95
29	3008-501	WASHER,35MM	1	$3.85
30	3004-505	BEARING, BALL(BAL SHAFT L)	1	$42.95
31	3004-504	BEARING, BALL(BAL SHAFT R)	1	$42.95
32	3004-540	KEY,WOODRUFF,M4	1	$6.34
33	3008-525	SEAL, OIL,M30	1	$73.95
34	3008-526	SEAL, OIL,M45	1	$86.95
35	3004-156	C-RING,M52	1	$3.85
36	3004-157	C-RING, 87.6X96X2	1	$22.01
37	3003-658	PIN,ALIGNMENT	1	$3.16
38	3005-313	SHAFT ASSY, BALANCER	1	$1,388.95
40	3005-316	SHAFT, WATER PUMP	1	$66.95
