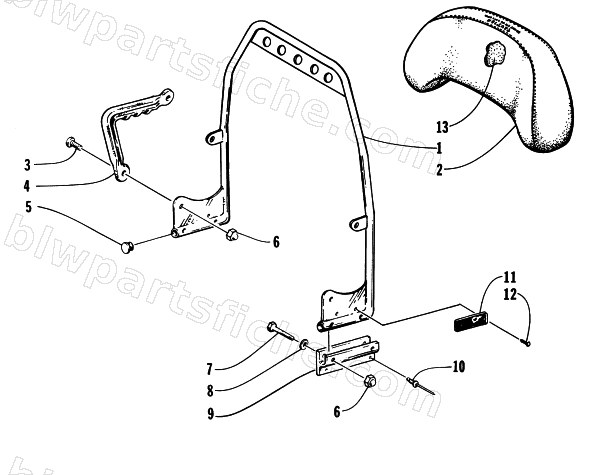

1998 Arctic Cat PANTHER 340 — BACKREST ASSEMBLY
1998 PANTHER 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0716-760 | BACKREST-WELD'T | 1 | $109.95 | |
| 2 | 0716-679 | COVER,BACKREST | 1 | $71.95 | |
| 3 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 4 | 0606-750 | HANDGRIP,BACKREST | 1 | $36.95 | |
| 5 | 0606-487 | CLOSURE,TUBE-3/4 X 14 GA. | 1 | $13.73 | |
| 7 | 0623-032 | SCREW, CAP -1/4-20X1 5/8 | 1 | $0.95 | |
| 8 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 9 | 2706-601 | BRACKET,BACKREST MOUNT-PTD BLK | 1 | $165.95 | |
| 10 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 11 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 12 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 13 | 0716-705 | FOAM,BACKREST(IDL N/A),44@1.8 | 1 | $85.95 |
