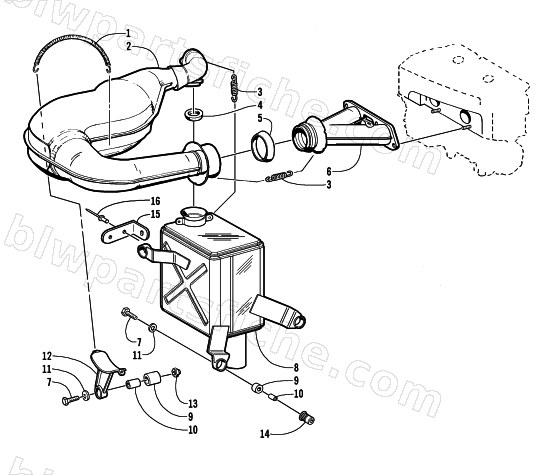

1998 Arctic Cat PANTHER 440 — EXHAUST ASSEMBLY
1998 PANTHER 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0612-027 | SPRING EXTENSION | 1 | $27.95 | |
| 2 | 0712-267 | CHAMBER,EXPANSION-WELDT (PAN440) | 1 | $549.95 | |
| 3 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 4 | 0612-188 | GASKET,EXH.-TAIL PIPE | 1 | $32.95 | |
| 5 | 0612-131 | GASKET,EXHAUST-HEADER JOINT | 1 | $29.95 | |
| 6 | 0712-209 | MANIFOLD, EXHAUST-WELDT | 1 | $123.95 | |
| 7 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 8 | 0712-250 | RESONATOR, EXHAUST-WELDT (98PAA) | 1 | $306.95 | |
| 9 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 11 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 12 | 0712-224 | BRKT,SUPPORT-EXP CHAMBER-WELDT | 1 | $15.95 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 15 | 0612-790 | BRKT,MTG-RESONATOR | 1 | $6.95 | |
| 16 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 |
