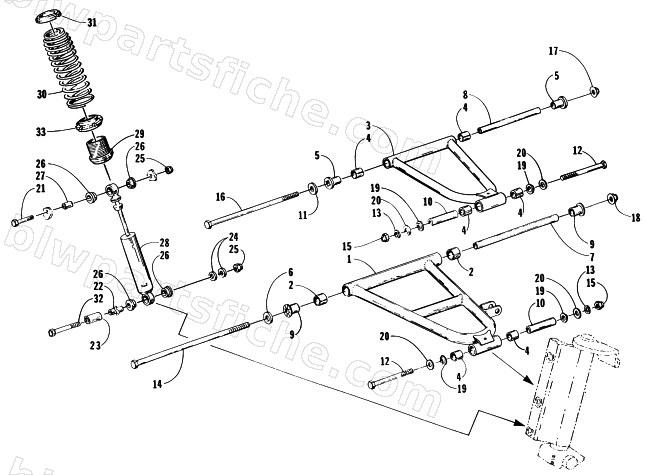

FRONT SUSPENSION AND SHOCK ABSORBER
1998 PANTHER 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-548 | A-ARM,LOWER-FABR-RH | 1 | $204.95 | |
| 1 | 0703-549 | A-ARM,LOWER-FABR-LH | 1 | $204.95 | |
| 2 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 3 | 0703-523 | ARM, FRONT UPPER - FAB | 1 | $153.95 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 5 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 6 | 0623-663 | WASHER,FLAT 1.00X.453X.164 Z&Y | 1 | $3.57 | |
| 7 | 0603-693 | TUBE,AXLE-LOWER PIVOT | 1 | $22.01 | |
| 8 | 0603-692 | TUBE,AXLE-UPPER ARM-PIVOT | 1 | $17.87 | |
| 9 | 0603-524 | AXLE,SERRATED-LOWER ARM PIVOT | 1 | $6.47 | |
| 10 | 0603-830 | AXLE,SPINDLE MTG.-STEEL (2.688") | 1 | $39.95 | |
| 11 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 12 | 0623-657 | SCREW,CAP HH 3/8-16 X 4.25 GR8 Z&Y | 1 | $1.78 | |
| 13 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 15 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 16 | 0623-509 | SCREW,CAP-HH 3/8-16X9.455 GD 8 | 1 | $32.95 | |
| 17 | 0623-661 | NUT,CROWNLOCK FLANGE 3/8-16 UNC Z&Y | 1 | $1.23 | |
| 18 | 0623-660 | NUT,CROWNLOCK FLANGE 7/16-14 UNC Z&Y | 1 | $1.95 | |
| 19 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 20 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 22 | 0603-835 | SPACER,SHOCK-MTG | 1 | $14.95 | |
| 23 | 1604-184 | SLEEVE, SHOCK ABSORBER | 1 | $42.95 | |
| 24 | 0623-675 | WASHER, FLAT-.641 X 1.187 X .060 Z&Y | 1 | $0.95 | |
| 25 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 26 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 27 | 0604-309 | SLEEVE,SHOCK ABSORBER | 1 | $2.33 | |
| 28 | 0603-792 | SHOCK ABSORBER-SKI | 1 | $172.95 | |
| 29 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 30 | 0603-860 | SPRING,COMPRESSION-110 LBS-PTD BLK | 1 | $93.95 | |
| 31 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 32 | 8002-234 | SCREW,CAP-HH 3/8-16 X4.00 G5 Z&Y | 1 | $1.50 | |
| 33 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 |
