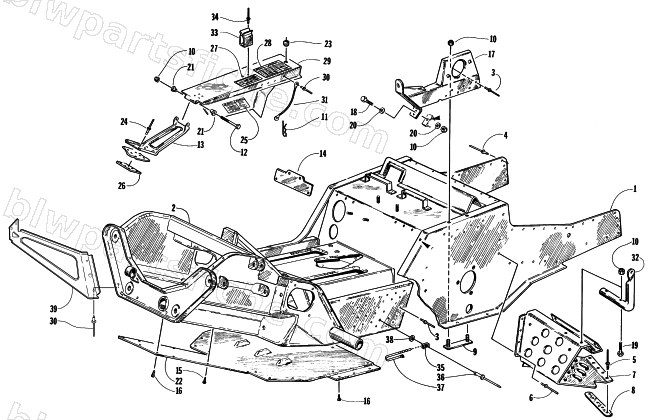

1998 Arctic Cat PANTHER 550 — FRONT FRAME, FOOTREST, AND BELT GUARD ASSEMBLY
1998 PANTHER 550
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-170 | FRONT END-ALUM-FAB. | 1 | $599.95 | |
| 2 | 0707-189 | FRONT END-WELDMENT | 1 | $1,547.95 | |
| 3 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 6 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 7 | 0706-916 | FOOTREST-RH (PAINTED BLK - 0616-286) | 1 | $165.95 | |
| 7 | 0706-917 | FOOTREST-LH (PAINTED BLK - 0616-287) | 1 | $163.95 | |
| 8 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 9 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 12 | 8002-050 | SCREW,CAP-HH 1/4-20 X2.75 G5 Z&Y | 1 | $2.95 | |
| 13 | 0616-658 | BRKT,MTG-GUARD | 1 | $21.95 | |
| 14 | 0605-213 | PLATE,BACKING-FRONT COVER | 1 | $15.11 | |
| 15 | 0623-569 | SCREW,SELF TAP-TSFH #10-32X1/2 TYPF Z&Y | 1 | $0.68 | |
| 16 | 0623-574 | SCREW,SELF TAP-TSTRH 10-24 X 5/8 TP F Z | 1 | $6.47 | |
| 18 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 19 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 20 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 21 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 23 | 0607-097 | GROMMET,GUARD | 1 | $1.92 | |
| 24 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 25 | 1611-582 | DECAL,CAUTION-JETTING/STORAGE | 1 | $13.73 | |
| 26 | 0616-345 | PLATE,BACKING-CLUTCH SHIELD MNT | 1 | $47.95 | |
| 27 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 28 | 2611-839 | DECAL,JET CHART | 1 | $6.95 | |
| 29 | 0707-841 | SHIELD,CLUTCH-ASS'Y-PTD BLK | 1 | $120.95 | |
| 30 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 31 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 32 | 0716-340 | TUBE,BUMPER SUPPORT-RH | 1 | $13.73 | |
| 32 | 0716-341 | TUBE,BUMPER SUPPORT-LH | 1 | $10.95 | |
| 33 | 0636-659 | KIT, DRIVE BELT HOLDER | 1 | $13.73 | |
| 34 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 35 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 36 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 37 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 38 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 39 | 1606-278 | BRKT,SUPPORT BUMPER-RH FRONT | 1 | $17.95 | |
| 39 | 1606-279 | BRKT,SUPPORT BUMPER-LH FRONT | 1 | $20.95 |
