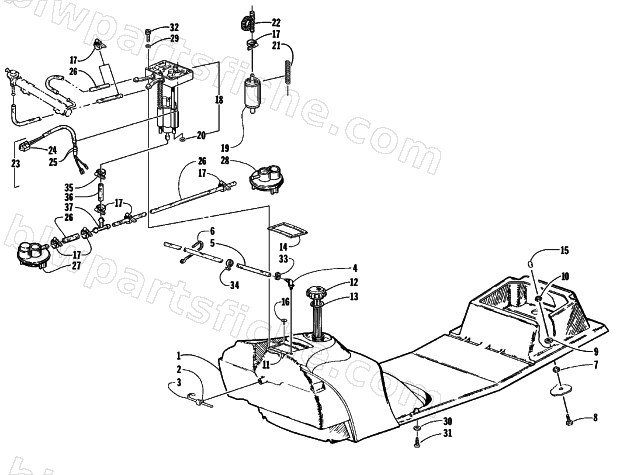

1998 Arctic Cat POWDER SPECIAL 600 EFI LE — GAS TANK AND FUEL PUMP ASSEMBLIES
1998 POWDER SPECIAL 600 EFI LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-359 | TANK, GAS - ASSY- 99 500/600 PS EFI | 1 | $322.95 | |
| 2 | 0670-243 | PLUG, GAS TANK-1/4 NPT | 1 | $1.92 | |
| 3 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 4 | 0670-572 | VENT,GAS TANK | 1 | $3.95 | |
| 5 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 5 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 6 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 7 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 9 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0670-409 | RING,RETAINING-EFI FUEL PUMP | 1 | $31.95 | |
| 12 | 0670-525 | CAP,GAS-W/GAUGE | 1 | $84.95 | |
| 13 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 14 | 0670-410 | SEAL,MOUNTING-FUEL PUMP EFI | 1 | $40.95 | |
| 16 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 17 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 18 | 0670-894 | PUMP,FUEL-ASS'Y-PFA-12-KEFI | 1 | $1,170.95 | |
| 19 | 3005-268 | PUMP ASSY,FUEL(KEFI) | 1 | $721.95 | |
| 20 | 0670-232 | RING,RETAINING-EFI PUMP | 1 | $6.59 | |
| 21 | 0670-316 | SPRING, COMPRESSION - ELEC FUEL PUMP | 1 | $5.95 | |
| 22 | 0670-315 | HOSE, LOOPED FUEL PUMP | 1 | $63.95 | |
| 23 | 0670-747 | HARNESS, PUMP-FUEL (KEFI) | 1 | $268.95 | |
| 24 | 0670-380 | HOUSING, CONNECTOR | 1 | $5.95 | |
| 25 | 0670-381 | O-RING | 1 | $14.95 | |
| 26 | 0610-075 | HOSE,GASLINE-10'ROLL | 1 | $150.95 | |
| 27 | 0770-731 | KIT,FUEL PICKUP | 1 | $185.95 | |
| 28 | 1670-619 | PICKUP, FUEL-(MP12)SMALL NONVENTED | 1 | $69.95 | |
| 29 | 0623-371 | WASHER,NYLON(ARDEN LWNY-016-9) | 1 | $0.15 | |
| 30 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 31 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 32 | 0623-521 | SCREW,MACH-HWH-10-24X1.25-Z&Y | 1 | $5.95 | |
| 33 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 34 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 35 | 0623-028 | CLAMP,5/16-3/4DIA | 1 | $3.57 | |
| 36 | 0670-559 | HOSE,FUEL PUMP-FORMED (EFI) | 1 | $38.95 | |
| 37 | 0670-235 | FITTING,TEE-5/16 | 1 | $4.54 |
