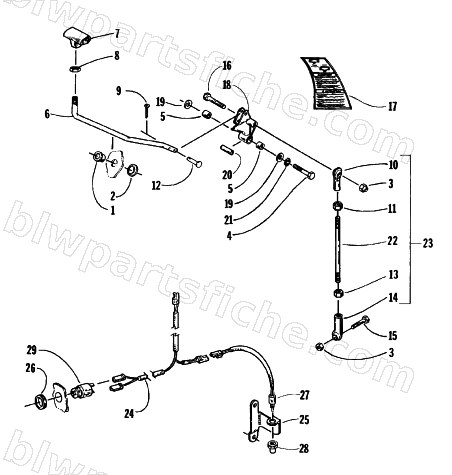

1998 Arctic Cat POWDER SPECIAL 600 EFI LE — REVERSE SHIFT LEVER ASSEMBLY
1998 POWDER SPECIAL 600 EFI LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1639-635 | KIT, REVERSE SHIFT LEV - '00 FAN/ZL'S\ | 1 | $154.95 | |
| 1 | 1606-086 | GUIDE,SHIFT LEVER | 1 | $8.21 | |
| 2 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 3 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 4 | 8002-140 | SCREW,CAP-HH 5/16-18 X2.75 G5 Z&Y | 1 | $1.23 | |
| 5 | 0602-844 | BEARING, (GARLOCK 08DU08) SHOCK END .500 | 1 | $3.16 | |
| 6 | 0602-924 | LEVER, REV SHIFT PUMA/JAG | 1 | $64.95 | |
| 7 | 0602-851 | GRIP,HANDLE-SHIFT LEVER | 1 | $34.95 | |
| 8 | 0123-005 | NUT,JAM 1/2-13 | 1 | $3.16 | |
| 10 | 0602-322 | ROD END,5/16-24-RH | 1 | $29.95 | |
| 11 | 0123-144 | NUT,HEX-JAM 5/16-24 NF ZN | 1 | $0.26 | |
| 12 | 0623-641 | PIN,CLEVIS-3/16X1 | 1 | $1.19 | |
| 13 | 0623-260 | NUT,HEX JAM 5/16-24 NF L H | 1 | $1.09 | |
| 14 | 0602-305 | ROD END L.H. 5/16-24 UNF | 1 | $22.95 | |
| 15 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 16 | 8002-139 | SCREW,CAP-HH 5/16-18 X2.50 G5 Z&Y | 1 | $1.95 | |
| 17 | 2611-783 | DECAL, REVERSE-PUMA/JAG | 1 | $25.95 | |
| 18 | 0702-335 | LINK,SHIFT PIVOT W/BUSHING | 1 | $82.95 | |
| 19 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 20 | 0602-853 | AXLE,PIVOT LINK | 1 | $12.95 | |
| 21 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 22 | 0702-290 | LINK,SHIFTING-LOWER | 1 | $94.95 | |
| 24 | 0686-120 | HARNESS,WIRING-ALARM | 1 | $41.95 | |
| 25 | 0602-854 | BRACKET,REV.SWITCH | 1 | $138.95 | |
| 26 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 27 | 0630-011 | SWITCH, ALARM | 1 | $60.95 | |
| 28 | 0630-013 | BOOT,SWITCH-REVERSE | 1 | $20.63 | |
| 29 | 0630-010 | ALARM,REVERSE | 1 | $112.95 |
