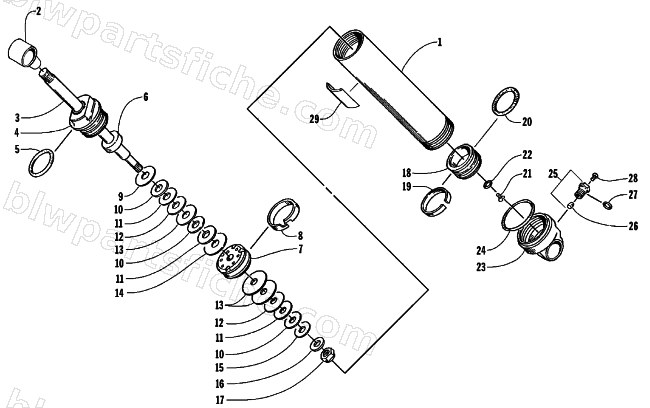

1998 Arctic Cat POWDER SPECIAL 600 EFI — REAR SUSPENSION REAR ARM SHOCK ABSORBER
1998 POWDER SPECIAL 600 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1604-382 | SHOCK,REAR ARM-FOX ('98 ZR) | 1 | $500.95 | |
| 1 | 0604-637 | BODY, SHOCK 7.310"(FOX ONLY) | 1 | $177.95 | |
| 2 | 0704-264 | EYELET,SHOCK W/BUSHING | 1 | $78.95 | |
| 4 | 0704-386 | ENDCAP - ASSY | 1 | $94.95 | |
| 5 | 0603-294 | O RING-CAP ASSY. | 1 | $6.95 | |
| 7 | 1603-189 | PISTON,0.046 ORIFICE | 1 | $71.95 | |
| 8 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 9 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 10 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 11 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 12 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 13 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 14 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 15 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 16 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 17 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 18 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 19 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 20 | 0603-447 | O-RING, .139 CS X 1.171 ID (FOX) | 1 | $4.95 | |
| 21 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 22 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 23 | 1703-846 | END CAP, FOX-ASS'Y | 1 | $154.95 | |
| 24 | 0603-438 | O-RING -END CAP | 1 | $4.95 | |
| 25 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 27 | 0603-445 | O-RING-VALVE | 1 | $3.95 | |
| 28 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 29 | 1604-426 | DECAL, WARNING | 1 | $13.95 |
