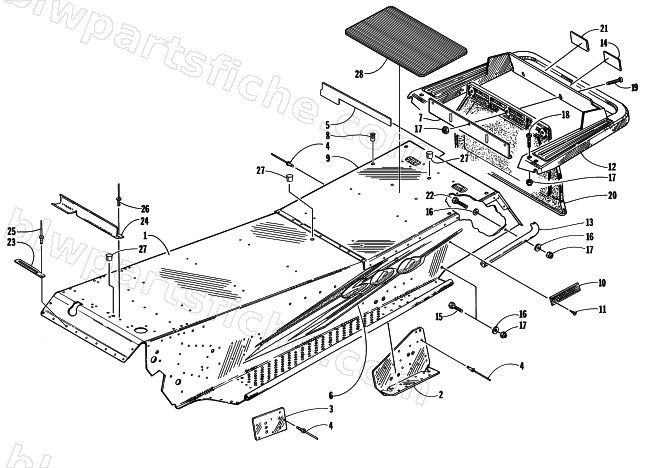

1998 Arctic Cat POWDER SPECIAL 600 EFI — TUNNEL AND REAR BUMPER
1998 POWDER SPECIAL 600 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-626 | TUNNEL - ASSY 98 P.S/P.S EFI | 1 | $1,162.95 | |
| 2 | 2706-780 | BRKT,SUSP. RH-PTD BLK | 1 | $50.95 | |
| 2 | 2706-781 | BRKT,SUSP. LH-PTD BLK | 1 | $45.95 | |
| 3 | 2706-116 | PLATE, BODY-REINFORCEMENT-PTD BLK | 1 | $6.75 | |
| 4 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 5 | 2611-940 | DECAL,FASTRACK/ETT | 1 | $81.95 | |
| 6 | 2611-908 | DECAL,TUNNEL-RH | 1 | $63.95 | |
| 6 | 2611-909 | DECAL,TUNNEL-LH | 1 | $63.95 | |
| 6 | 3611-126 | DECAL,TUNNEL-RH | 1 | $63.95 | |
| 6 | 3611-127 | DECAL,TUNNEL-LH | 1 | $63.95 | |
| 7 | 1606-401 | CAP,SUPPORT-SNOWFLAP | 1 | $11.95 | |
| 8 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 9 | 1606-217 | PLATE,END-REAR TUNNEL-136" | 1 | $212.95 | |
| 10 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 11 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 12 | 0716-849 | BUMPER,REAR-W/STEEL INSERT (ETT/136) | 1 | $269.95 | |
| 13 | 2706-600 | INSERT,BUMPER-PTD BLK | 1 | $64.95 | |
| 14 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 15 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8019-585 | SCREW,MACH-TSPNH 1/4-20 X 1 1/2 GR2 Z&Y | 1 | $0.55 | |
| 19 | 8017-584 | SCREW,MACH-TSTRH 1/4-20 X 1 1/4 GR2 Z&Y | 1 | $1.23 | |
| 20 | 0616-612 | SNOWFLAP,30 DEG.FLIP UP WHITE | 1 | $54.95 | |
| 20 | 0616-613 | SNOWFLAP,REV- | 1 | $68.95 | |
| 21 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 22 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 23 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 24 | 0607-488 | BRCKT, MAIN HARNESS PROTECTOR | 1 | $16.49 | |
| 25 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 26 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 27 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 28 | 1606-444 | PAD,RUBBER-RIBBED | 1 | $31.95 |
