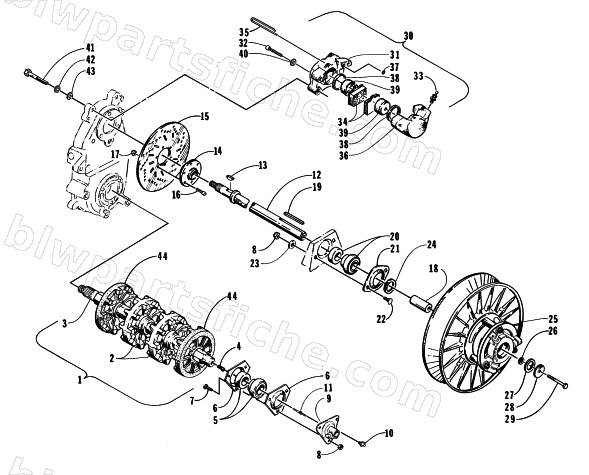

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
1998 THUNDERCAT MC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-036 | TRACK DRIVE ASSY - 8 TOOTH | 1 | $479.95 | |
| 2 | 0102-297 | SPROCKET,8 TOOTH | 1 | $50.95 | |
| 3 | 0602-958 | SHAFT, DRIVE | 1 | $326.95 | |
| 4 | 0120-247 | BUSHING,DRIVE-SPEEDOMETER | 1 | $5.65 | |
| 5 | 1602-375 | BEARING,1.00 W/COLLAR | 1 | $72.95 | |
| 6 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 7 | 8011-132 | BOLT,CRG 5/16-18X1.0 GR1 Z&Y | 1 | $1.78 | |
| 8 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 9 | 0620-031 | ADAPTOR,DRIVE SPEEDOMETER | 1 | $109.95 | |
| 10 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 11 | 0602-154 | CABLE,DRIVE ADAPTOR | 1 | $12.35 | |
| 12 | 0702-267 | SHAFT,DRIVEN-ASSY. | 1 | $274.95 | |
| 13 | 0602-598 | KEY,WOODRUFF-HARDENED | 1 | $17.87 | |
| 14 | 0602-952 | HUB,BRAKE-98 HYD | 1 | $98.95 | |
| 15 | 0602-951 | DISC,BRAKE-98 HYD | 1 | $147.95 | |
| 16 | 0623-433 | SCREW,HSFH-#10-32 X .75 (PLAIN) | 1 | $0.55 | |
| 17 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 18 | 0648-017 | STUB SHAFT, 1.828" DIE CAST DRIVEN | 1 | $17.87 | |
| 19 | 0101-076 | KEY 3/16 X 1/4 X 3 | 1 | $2.75 | |
| 20 | 1602-290 | BEARING,1 W/LOCK(LARGE RACE) | 1 | $81.95 | |
| 21 | 0602-233 | FLANGE,BRG-TWO MTG HOLE | 1 | $4.26 | |
| 22 | 8011-130 | BOLT,CRG 5/16-18X.75 GR1 Z&Y | 1 | $1.09 | |
| 23 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 24 | 0623-118 | WASHER,FLAT-1.00 X1.43 X.030 | 1 | $0.95 | |
| 24 | 0623-119 | WASHER, FLAT- 1.00 X 1.43 X .075 | 1 | $7.03 | |
| 25 | 0726-092 | CLUTCH,DRIVEN W/PLTS (YEL,57/50) | 1 | $1,061.95 | |
| 26 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 27 | 0123-578 | WASHER,FLAT 1IDX1.5X.030 THK | 1 | $3.95 | |
| 29 | 8002-141 | SCREW,CAP-HH 5/16-18 X3.00-G5 Z&Y | 1 | $1.23 | |
| 30 | 0602-829 | CALIPER,BRAKE-FIXED/DUAL PISTON | 1 | $437.95 | |
| 32 | 8005-679 | SCREW, CAP-HSH 3/8-16X2.50 Z&Y | 1 | $3.85 | |
| 33 | 0602-707 | SCREW, BLEED-ASSY | 1 | $6.89 | |
| 34 | 1702-429 | PAD,BRAKE-SET | 1 | $114.95 | |
| 35 | 0602-706 | PIN,RETAINING-BRAKE PAD | 1 | $12.35 | |
| 37 | 0602-729 | O-RING,BRAKE HOUSING | 1 | $5.65 | |
| 38 | 0602-583 | O-RING, RETRACTOR-SQUARE | 1 | $22.01 | |
| 39 | 0602-708 | PISTON | 1 | $81.95 | |
| 40 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 41 | 8002-316 | SCREW,CAP-HH 7/16-14 X1.75 G5 Z&Y | 1 | $0.75 | |
| 42 | 8051-307 | WASHER,SPR LOCK-7/16 .440X.784X.133 Z&Y | 1 | $0.40 | |
| 43 | 8050-307 | WASHER,FLAT- 7/16 X .922 X .065 Z&Y | 1 | $0.15 |
