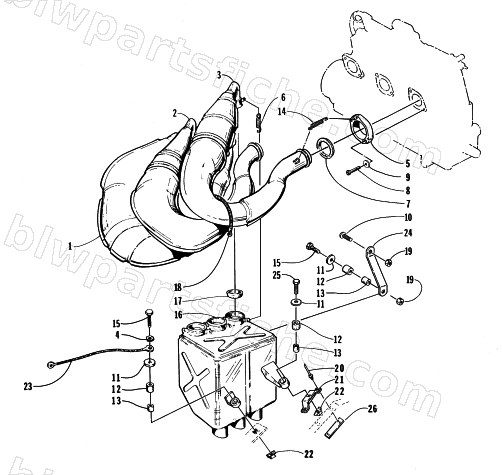

EXHAUST ASSEMBLY
1998 THUNDERCAT MC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0712-251 | CHAMBER,EXP-MAG ('98 THC) | 1 | $641.95 | |
| 2 | 0712-252 | CHAMBER,EXP-CEN ('98 THC) | 1 | $909.95 | |
| 3 | 0712-253 | CHAMBER,EXP-PTO ('98 THC) | 1 | $651.95 | |
| 4 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 5 | 0612-665 | MANIFOLD,EXHAUST | 1 | $75.95 | |
| 6 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 7 | 0612-667 | GASKET,EXHAUST-HEADER JOINT-2.000 DIA | 1 | $28.95 | |
| 9 | 0623-710 | WASHER,LOCK HI-COLLAR METRIC | 1 | $0.40 | |
| 10 | 0623-472 | SCREW, CAP HSBH 1/4X20X1- Z&Y | 1 | $0.95 | |
| 11 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 12 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 14 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 15 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 16 | 0712-254 | RESONATOR,EXHAUST-WELDT ('98 THC) | 1 | $679.95 | |
| 17 | 0612-693 | GASKET,EXHAUST JOINT-RESONATOR | 1 | $29.95 | |
| 18 | 0612-027 | SPRING EXTENSION | 1 | $27.95 | |
| 19 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 20 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 21 | 0707-184 | BRKT,RES. MOUNT-WELD'T | 1 | $28.95 | |
| 22 | 0623-157 | RETAINER NUT,1/4-20 | 1 | $3.85 | |
| 23 | 0686-099 | HARNESS,ENGINE GROUND | 1 | $9.59 | |
| 24 | 0612-479 | BRKT,MTG-RESONATOR-OUTER | 1 | $15.11 | |
| 25 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 26 | 0607-429 | PLATE,BACKING-RESONATOR MOUNT | 1 | $1.37 |
