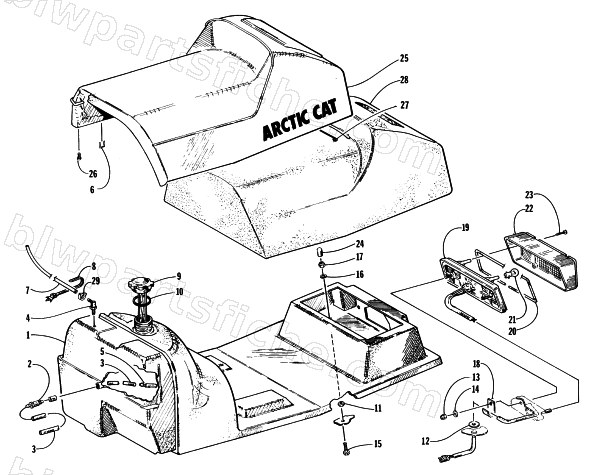

GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
1998 THUNDERCAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-196 | TANK, GAS-ASSY 97 CO | 1 | $435.95 | |
| 2 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 3 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 3 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 4 | 0670-572 | VENT,GAS TANK | 1 | $3.95 | |
| 5 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 6 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 7 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 8 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 9 | 0670-525 | CAP,GAS-W/GAUGE | 1 | $84.95 | |
| 10 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 11 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 | |
| 13 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 14 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 15 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 16 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 19 | 0609-079 | TAILLIGHT-ASSY W/36 HARNESS | 1 | $167.95 | |
| 20 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 21 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 22 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 23 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 25 | 0716-609 | COVER, SEAT-W/DECAL | 1 | $436.95 | |
| 26 | 0124-031 | SCREW,TAP HWH #10-24 X .375 | 1 | $13.73 | |
| 27 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 28 | 0716-619 | FOAM,SEAT-ETT (LONG) | 1 | $307.95 | |
| 29 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 |
