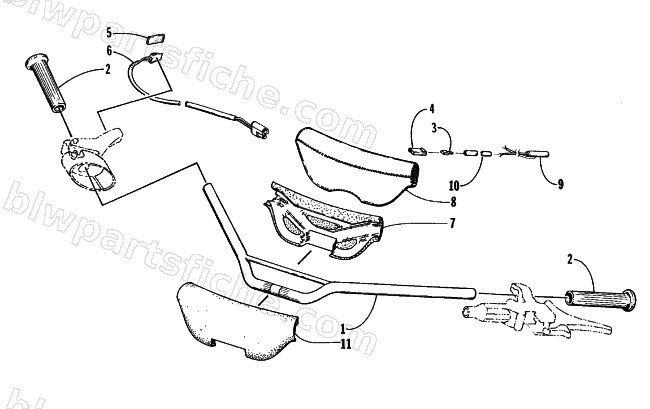

1998 Arctic Cat ZL 440 — HANDLEBAR ASSEMBLY
1998 ZL 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1705-008 | HANDLEBAR-PTD BLK | 1 | $77.95 | |
| 2 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 3 | 0231-007 | TERMINAL FMALE 2 COND | 1 | $2.95 | |
| 4 | 0230-015 | CONN BODY RECPT 1CON | 1 | $1.95 | |
| 5 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 6 | 0609-372 | ELEMENT, THUMBWARMER-ON/OFF | 1 | $62.95 | |
| 8 | 0705-285 | WRAP,HANDLEBAR-W/EMBOSS | 1 | $32.95 | |
| 9 | 0115-356 | HEATER,HANDLEBAR 32.00" | 1 | $66.95 | |
| 10 | 0706-528 | GEON TUBING-10 FT ROLL | 1 | $13.95 |
