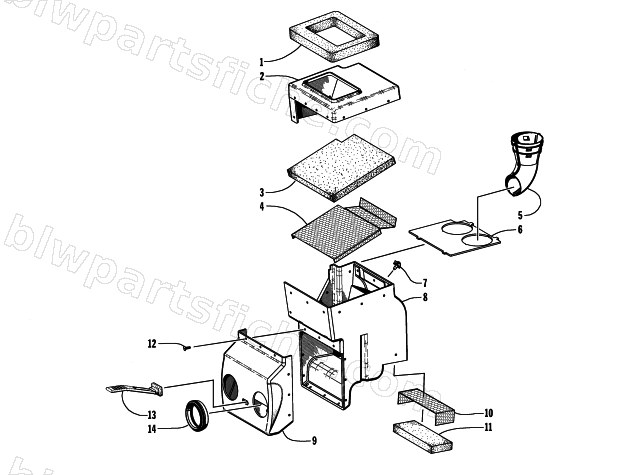

1998 Arctic Cat ZR 440 SNO-PRO — AIR SILENCER ASSEMBLY
1998 ZR 440 SNO-PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0617-290 | FOAM,SEAL-AIR INTAKE ('98 440 PRO) | 1 | $24.95 | |
| 2 | 0670-821 | EXTENSION,SILENCER-TOP ('98 SNO PRO) | 1 | $114.95 | |
| 4 | 1606-450 | SCREEN,AIR SILENCER-UPPER ('98 440 PRO) | 1 | $24.95 | |
| 5 | 0670-617 | FUNNEL, AIR SILENCER | 1 | $53.95 | |
| 6 | 0770-291 | BAFFLE,AIR-MACH ('98 440 PRO) | 1 | $6.95 | |
| 7 | 0623-403 | CLAMP,PUSH MOUNT | 1 | $0.95 | |
| 9 | 0670-819 | EXTENSION,SILENCER-FRONT ('98 SNO PRO) | 1 | $86.95 | |
| 10 | 1606-451 | screen,AIR SILENCER-REAR ('98 440 PRO) | 1 | $17.87 | |
| 11 | 0617-288 | FOAM,AIR SILENCER-REAR CLOSE-OFF ('98 44 | 1 | $3.95 | |
| 12 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 13 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 14 | 1670-352 | BOOT, AIR SILENCER | 1 | $84.95 |
