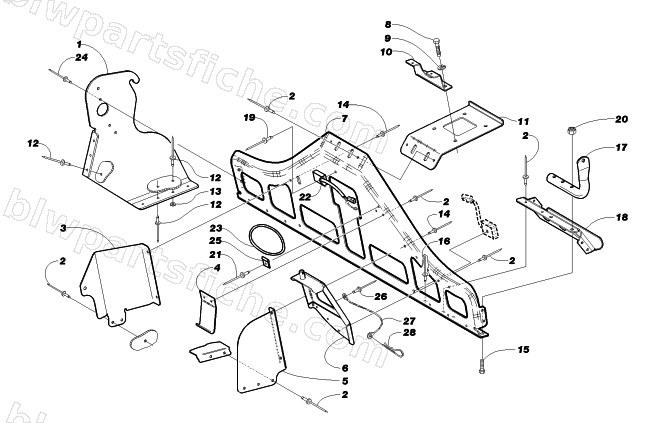

1998 Arctic Cat ZR 440 SNO-PRO — STEERING SUPPORT ASSEMBLY
1998 ZR 440 SNO-PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-424 | SUPPORT,ANKLE-RH ('98 440 PRO) | 1 | $243.95 | |
| 1 | 1606-425 | SUPPORT,ANKLE-LH ('98 440 PRO) | 1 | $243.95 | |
| 2 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 3 | 0716-861 | BRKT,BRAKE DUCT MTG-W/ STUD | 1 | $69.95 | |
| 4 | 1606-437 | BRKT,SUPPORT-AIRBOX (REAR) | 1 | $17.87 | |
| 5 | 1606-434 | BRKT,CLOSE-OFF (AIRBOX) | 1 | $46.95 | |
| 6 | 0716-816 | BRKT,MTG-GUARD (WELD'T) | 1 | $39.95 | |
| 7 | 0605-369 | SUPPORT,STEERING-FORMED ('98 440 PRO) | 1 | $248.95 | |
| 8 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 9 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 10 | 1606-490 | BRKT,MTG-CONSOLE ('98 440 PRO) | 1 | $20.95 | |
| 11 | 1606-428 | BRKT,GAS TANK SUPPORT-UPPER ('98 440 PRO | 1 | $26.95 | |
| 12 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 13 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 14 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 15 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 16 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 17 | 0716-844 | SUPPORT,FRT BUMPER-RH (REAR) | 1 | $23.39 | |
| 17 | 0716-845 | SUPPORT,FRT BUMPER-LH (REAR) | 1 | $23.39 | |
| 18 | 1606-426 | BRKT,TOE HOLD-RH ('98 440 PRO) | 1 | $82.95 | |
| 18 | 1606-427 | BRKT,TOE HOLD-LH ('98 440 PRO) | 1 | $82.95 | |
| 19 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 20 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 22 | 0630-117 | SWITCH,IGNITION TIMING | 1 | $69.95 | |
| 23 | 0107-003 | SEAL,O RING .093 | 1 | $1.37 | |
| 24 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 25 | 0623-752 | CLAMP,CABLE-NYLON (W4NY-125) | 1 | $0.75 | |
| 26 | 8060-426 | RIVET,BLIND-DH AA54 BLK | 1 | $0.12 | |
| 27 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 28 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 |
