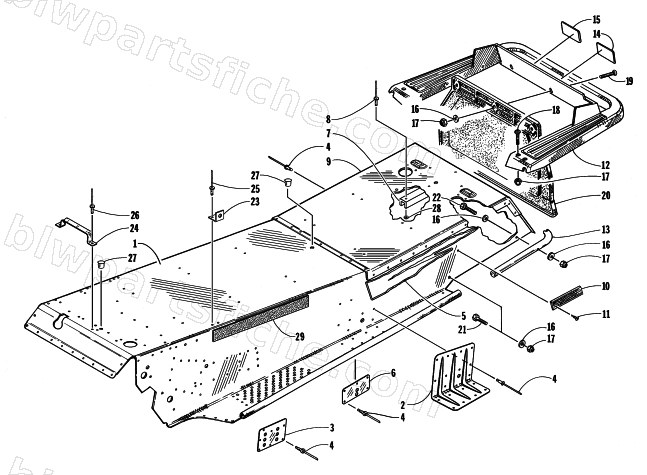

1998 Arctic Cat ZR 440 SNO-PRO — TUNNEL AND REAR BUMPER
1998 ZR 440 SNO-PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-645 | TUNNEL-ASSY 98 ZR440 SNOW PRO | 1 | $861.95 | |
| 2 | 1606-368 | BRKT,REAR SUSP MTG-RH (OUTER) | 1 | $30.95 | |
| 2 | 1606-369 | BRKT,REAR SUSP MTG-LH (OUTER) | 1 | $30.95 | |
| 3 | 2706-116 | PLATE, BODY-REINFORCEMENT-PTD BLK | 1 | $6.75 | |
| 4 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 5 | 3611-144 | DECAL,TUNNEL-RH ('98 440 PRO) | 1 | $40.95 | |
| 5 | 3611-145 | DECAL,TUNNEL-LH ('98 440 PRO) | 1 | $40.95 | |
| 6 | 1606-436 | PLATE,BACKING-REAR SUSP MTG (REAR) | 1 | $4.95 | |
| 7 | 0716-857 | PROTECTOR,TUNNEL-MACH (REAR) '98 440 PRO | 1 | $13.95 | |
| 8 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 9 | 1606-414 | PLATE,END-REAR TUNNEL (NOTCHED) | 1 | $244.95 | |
| 10 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 11 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 12 | 0716-223 | BUMPER W/STEEL INSERT | 1 | $181.95 | |
| 12 | 0616-731 | BUMPER,REAR | 1 | $164.95 | |
| 13 | 0616-314 | INSERT,BUMPER-ALUM. | 1 | $39.95 | |
| 14 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 15 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8019-585 | SCREW,MACH-TSPNH 1/4-20 X 1 1/2 GR2 Z&Y | 1 | $0.55 | |
| 19 | 8017-582 | R/B 1623-689 | 1 | $0.65 | |
| 20 | 0616-612 | SNOWFLAP,30 DEG.FLIP UP WHITE | 1 | $54.95 | |
| 21 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 22 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 24 | 0707-710 | BRKT,HOSE HOLDDOWN-PTD BLK | 1 | $17.87 | |
| 25 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 26 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 27 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 28 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 |
