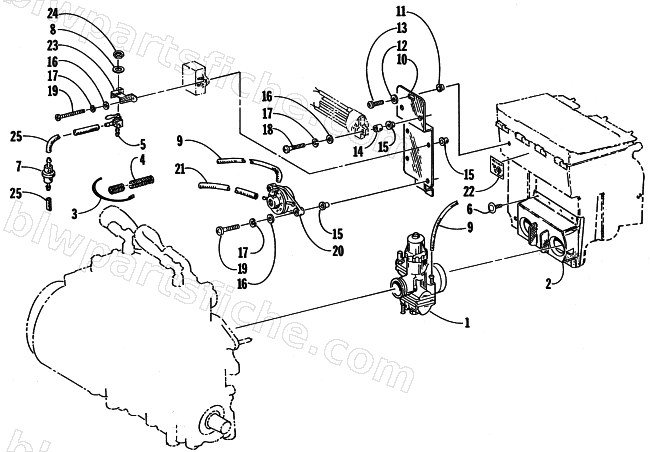

1998 Arctic Cat ZR 440 — CARBURETOR AND FUEL PUMP ASSEMBLY
1998 ZR 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0670-815 | CARBURETOR,VM34-521 ('98 440 ZR) | 1 | $457.95 | |
| 2 | 0670-645 | BOOT,AIR SILENCER-('97 440 ZR) | 1 | $66.59 | |
| 3 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 4 | 0716-546 | LOOM,PROTECTIVE-6" (0619-342) | 1 | $1.64 | |
| 5 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 | |
| 6 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 7 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 8 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 9 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 9 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 10 | 0770-205 | PLATE,MTG.-FAB (ENG. COMP0NENTS) | 1 | $30.95 | |
| 11 | 0623-627 | INSERT,THREADED-ATS2-420 (.25 X 20).620 | 1 | $3.02 | |
| 12 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 13 | 8017-577 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 Z&Y | 1 | $1.23 | |
| 14 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 15 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 16 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 17 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 19 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 20 | 0670-311 | FUEL PUMP-ASSY.(DF52-152) | 1 | $124.95 | |
| 21 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 22 | 0611-978 | DECAL,FUEL SHUT-OFF VALVE | 1 | $10.95 | |
| 23 | 0770-614 | BRKT,MTG-FUEL SHUT OFF-PTD BLK | 1 | $16.95 | |
| 24 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 25 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 25 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 |
