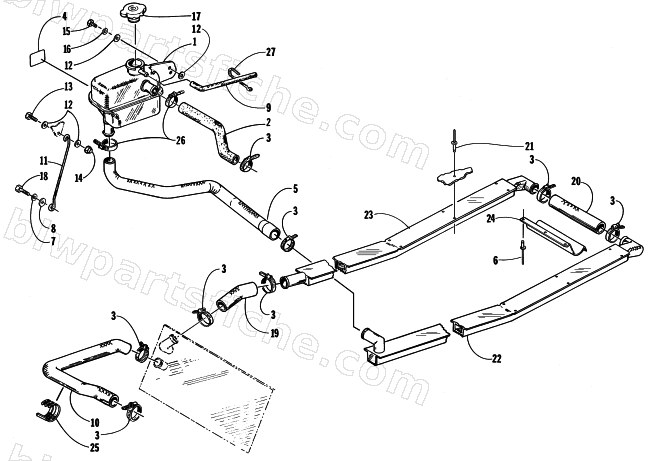

COOLING ASSEMBLY
1998 ZR 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0670-494 | TANK,COOLANT-RESERVOIR | 1 | $63.95 | |
| 2 | 0610-221 | HOSE,ENGINE TO COOLANT TANK (580 ZR) | 1 | $41.95 | |
| 3 | 0214-015 | CLAMP,HOSE-#16/#17 | 1 | $2.19 | |
| 4 | 2611-758 | DECAL,FILL LEVEL-COOLANT TANK | 1 | $11.95 | |
| 6 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 7 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 8 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 9 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 9 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 10 | 0610-320 | HOSE,FRT EXCH. TO PUMP (98ZRH) | 1 | $55.95 | |
| 11 | 1606-272 | BRKT,WIREFORM-COOLANT TANK (9.48") | 1 | $7.95 | |
| 12 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 13 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 14 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 16 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 17 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 18 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 19 | 0610-244 | HOSE,COOLANT-FRONT EXCH.TO RH EXCH. | 1 | $26.95 | |
| 20 | 0610-215 | HOSE,COOLANT-REAR EXCH | 1 | $30.95 | |
| 21 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 22 | 0716-765 | HEAT EXCH,WELD'T-LH (1.00" FINNED) | 1 | $279.95 | |
| 23 | 0716-764 | HEAT EXCH,WELD'T-RH (1.00" FINNED) | 1 | $238.95 | |
| 24 | 0616-810 | GUARD,COOLANT HOSE | 1 | $20.95 | |
| 25 | 0623-540 | TIE, CABLE-TRIPLE | 1 | $1.78 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
